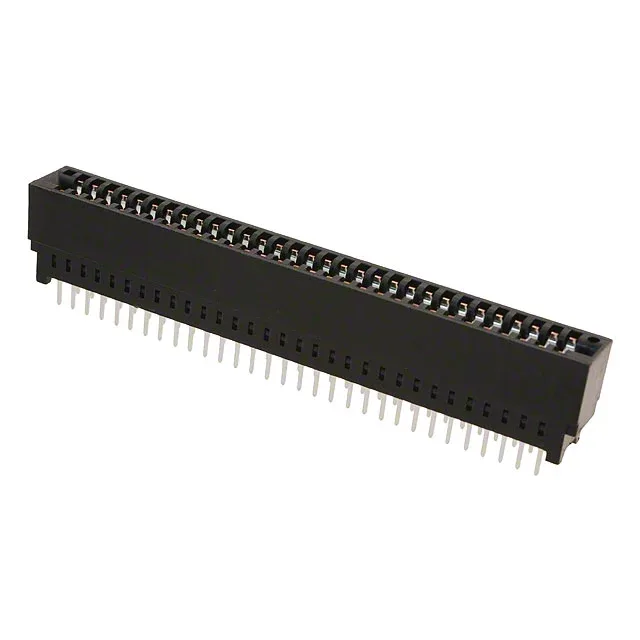

TE Connectivity AMP Connectors 5645235-1
MPN5645235-1
Active
CONN EDGE DUAL FMALE 62POS 0.100
$6.21Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesStandard Edge II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Standard Edge II |
| Card type | Non Specified - Dual Edge |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 85°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Material - insulation | Polyester, Glass Filled |
| Pitch | 0.100\" (2.54mm) |
| Gender | Female |
| Package | Bulk |
| Read out | Dual |
| Termination | Press-Fit |
| Card thickness | 0.054\" ~ 0.070\" (1.37mm ~ 1.78mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 62 |
| Contact finish thickness | 30.0µin (0.76µm) |
