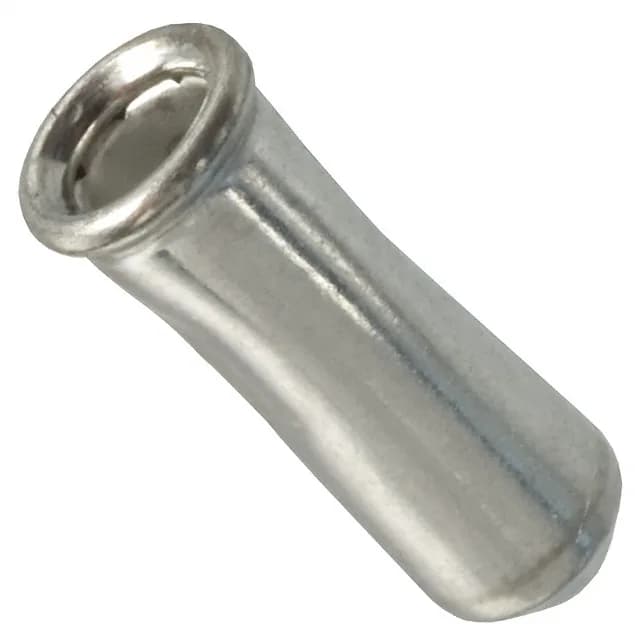

TE Connectivity AMP Connectors Series 5 pin socket, order code 5645979-1, accepts 0.042" ~ 0.049" pin diameter, beryllium copper contact, tin finish 100.0µin, flange diameter 0.118", solder termination, Tape & Reel package.
| Parameter | Value |
|---|---|
| Series | 5 |
| Tail type | No Tail |
| Mounting hole diameter | 0.102\" (2.59mm) |
| Operating temperature | -65°C ~ 126°C |
| Socket depth | 0.145\" ~ 0.275\" (3.68mm ~ 6.99mm) |
| Contact material | Beryllium Copper |
| Package | Tape & Reel (TR) |
| Termination | Solder |
| Contact finish | Tin |
| Board thickness | 0.062\" ~ 0.125\" (1.57mm ~ 3.18mm) |
| Flange diameter | 0.118\" (3.00mm) |
| Length - overall | 0.308\" (7.82mm) |
| Accepts pin diameter | 0.042\" ~ 0.049\" (1.07mm ~ 1.24mm) |
| Contact finish thickness | 100.0µin (2.54µm) |
The 5645979-1 is a Series 5 pin socket from TE Connectivity AMP Connectors, accepting pin diameters from 0.042" to 0.049" (1.07mm to 1.24mm).
Beryllium copper is the contact material — it holds spring force through repeated insertions better than phosphor bronze at elevated temperature.
The 5645979-1 accepts pin diameters from 0.042" to 0.049" (1.07mm to 1.24mm).
TE Connectivity AMP Connectors provides RoHS and REACH compliance documentation for the 5645979-1. Check the product datasheet for the latest declarations.
