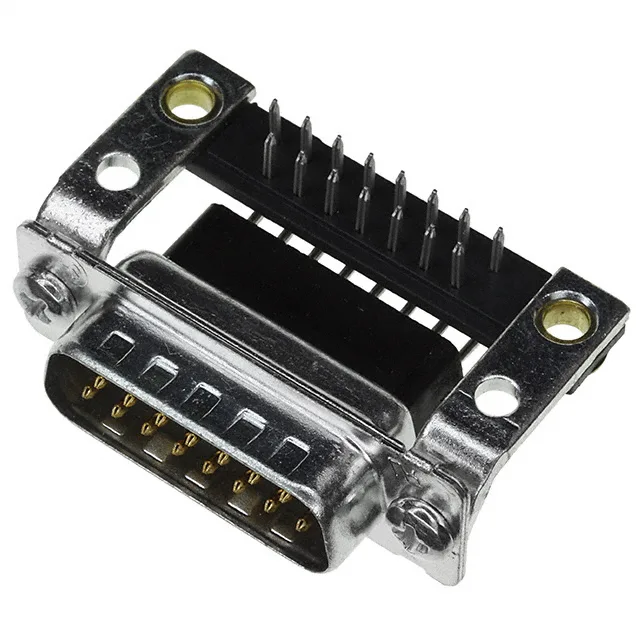

TE Connectivity AMP Connectors 5745352-4
MPN5745352-4
Active
CONN D-SUB PLUG 15POS R/A SLDR
$26.72Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPLIMITE HDP-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HDP-20 |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 2 (DA, A) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polyamide (PA), Nylon, Glass Filled |
| Shell material, finish | Steel, Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Grounding Indents, Mounting Brackets |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Mating Side, Standard Screws (4-40) |
| Rows | 2 |
| Backset spacing | 0.545\" (13.84mm) |
| Positions | 15 |
