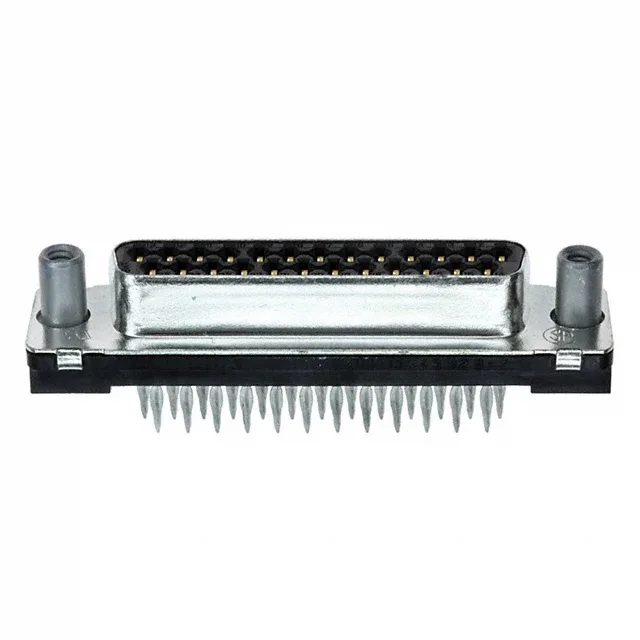

TE Connectivity AMP Connectors 5745928-2
MPN5745928-2
Active
CONN D-SUB RCPT 25P VERT PRESS
$17.6Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Type | Signal |
| Mounting | Through Hole |
| Connector type | Receptacle, Female Sockets |
| Shell size, connector layout | 3 (DB, B) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polyamide (PA), Nylon, Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Termination | Press-Fit |
| Contact finish | Gold |
| Flange feature | Mating Side, Female Screwlock (4-40) |
| Rows | 2 |
| Positions | 25 |
| Contact finish thickness | Flash |
