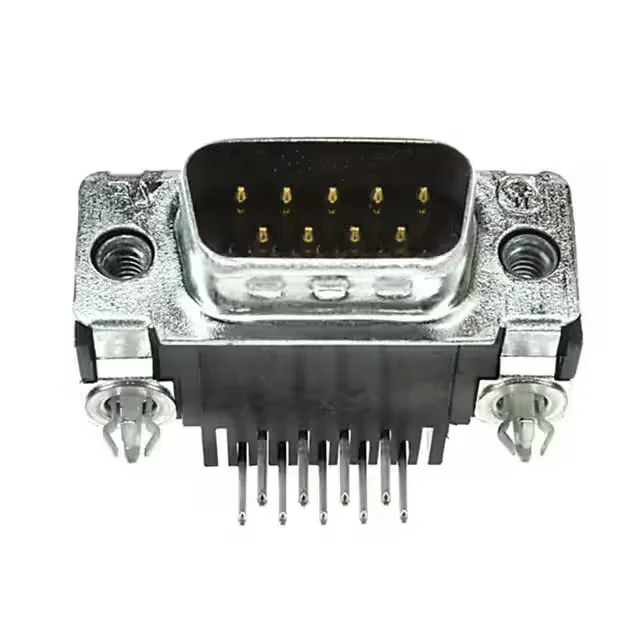

TE Connectivity AMP Connectors 5747832-4
MPN5747832-4
Active
CONN D-SUB PLUG 9POS R/A SLDR
$7.93Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Board Lock, Ground Strap, Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Backset spacing | 0.590\" (14.99mm) |
| Positions | 9 |
