TE Connectivity AMP Connectors 5748477-1
MPN5748477-1
Active

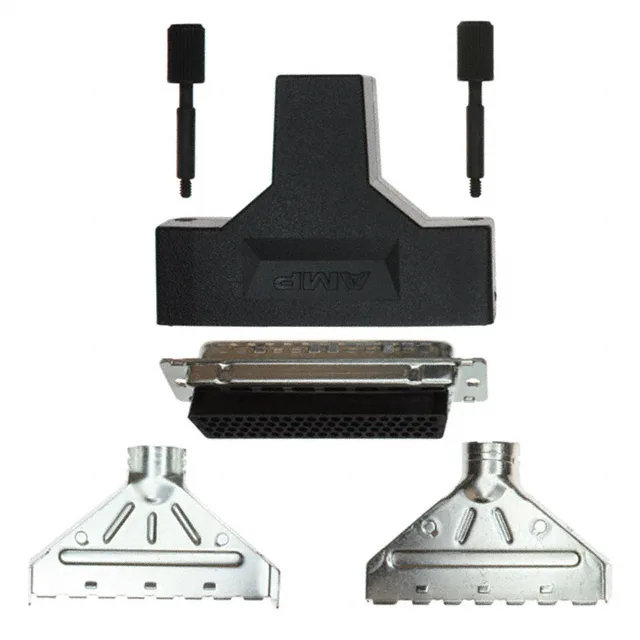

CONN D-SUB HD HOUSING PLUG 78POS
$26.89Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPLIMITE HDP-22
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HDP-22 |
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug for Male Contacts |
| Shell size, connector layout | 5 (DD, D) High Density |
| Color | Black |
| Dielectric material | Polyamide (PA), Nylon, Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Note | Contacts Not Included |
| Package | Bulk |
| Features | Backshell, Grounding Indents, Shielded |
| Flange feature | Cable Side (4-40) |
| Rows | 4 |
| Positions | 78 |
| Shell finish thickness | 200µin (5.08µm) |
