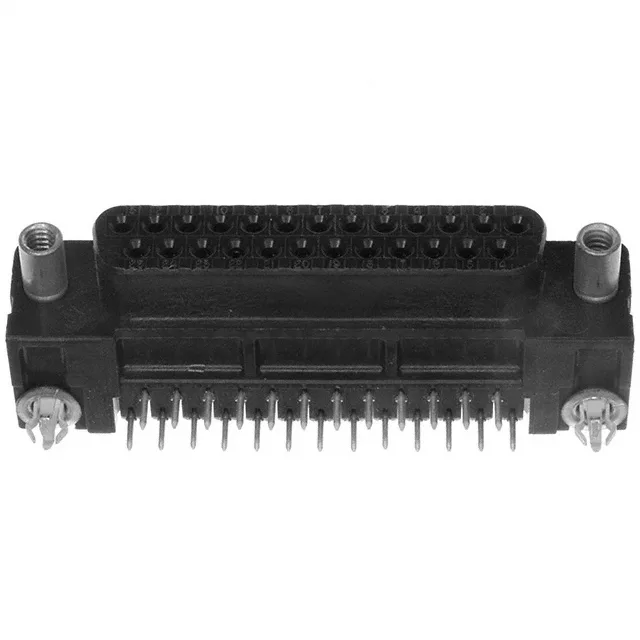

TE Connectivity AMP Connectors 5748981-1
MPN5748981-1
Active
CONN D-SUB RCPT 25POS R/A SLDR
$18.72Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 125V |
| Shell size, connector layout | 3 (DB, B) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Mating Side, Female Screwlock (4-40) |
| Rows | 2 |
| Backset spacing | 0.318\" (8.08mm) |
| Positions | 25 |
| Contact finish thickness | 30.0µin (0.76µm) |
