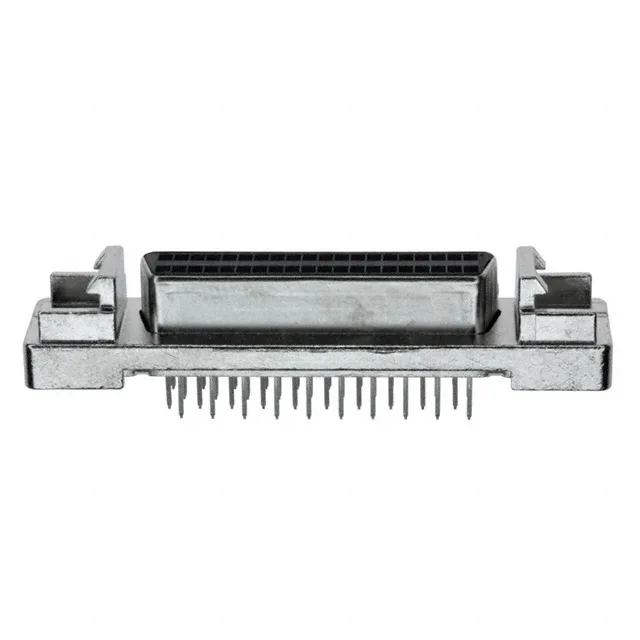

5749069-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 5749069-4 AMPLIMITE .050 III D-Sub Receptacle, 40 Pos

MPN5749069-4
Obsolete

TE Connectivity AMPLIMITE.050 III D-sub receptacle, 5749069-4, 40 positions, 2 rows, 1A, 30V, through-hole solder, gold contacts, shielded, black housing.

$14.5700Ref. price · indicative, final on quote
5749069-4 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5749069-4 Technical Specifications
ParameterValue
SeriesAMPLIMITE .050 III
GenderSignal
Mounting typeThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating30V
Current rating1A
Shell size, connector layout0.050 Pitch x 0.100 Row to Row
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Nickel Plated
Material flammability ratingUL94 V-0
PackageTube
FeaturesShielded
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (2-56); Latchblocks, Rails
Rows2
Positions40

Product details

Finding a Replacement or Cross-Reference

The 5749069-4: The AMPLIMITE.050 III series includes other position counts and configurations, but a direct pin-compatible drop-in is not documented. The 5749069-3 is a different variant within the same base product number family; confirm the specific position count and flange features against your assembly drawing before ordering.

This is a receptacle with female sockets, so it mates with a male D-sub plug of the same shell size and 0.050-inch pitch layout. The flange includes housing/shell mounting holes for 2-56 screws and latchblocks/rails for secure panel or board mounting.

Frequently asked questions

What is the replacement for 5749069-4?

The part is sourced through the surplus or broker channel as an obsolete line item. Check the AMPLIMITE.050 III series for active position-count variants, but confirm footprint and flange compatibility against your assembly.
