TE Connectivity AMP Connectors 5749069-8
MPN5749069-8
Active

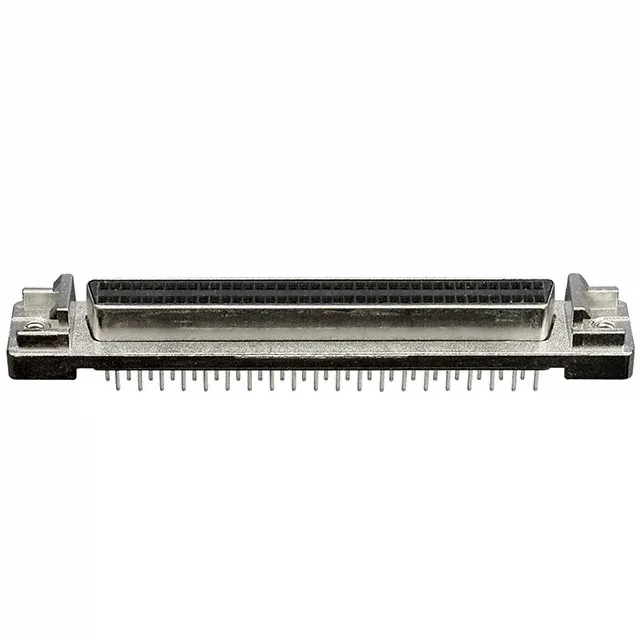

CONN D-TYPE RCPT 80POS VERT SLDR
$20.86Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPLIMITE .050 III
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPLIMITE .050 III |
| Type | Signal |
| Mounting | Through Hole |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 30V |
| Current rating | 1A |
| Shell size, connector layout | 0.050 Pitch x 0.100 Row to Row |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Thermoplastic |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (2-56); Latchblocks, Rails |
| Rows | 2 |
| Positions | 80 |
