TE Connectivity AMP Connectors 5749266-1
MPN5749266-1
Active

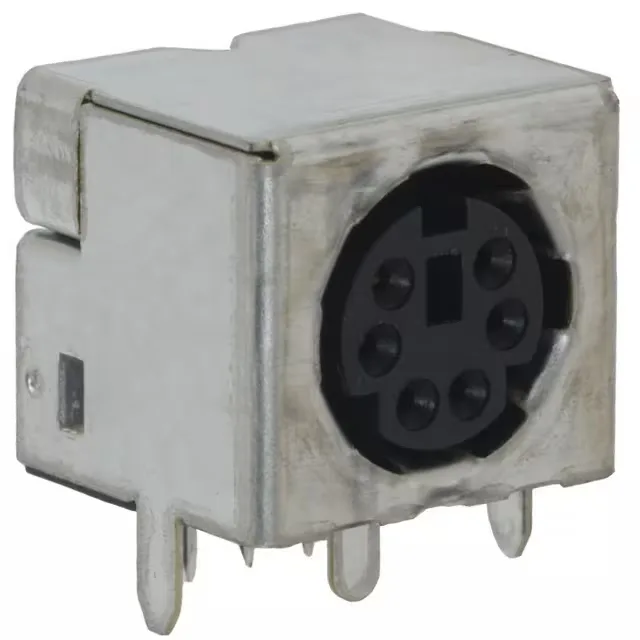

CONN RCPT FMALE MINI DIN 6P SLDR
$3.04Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Push-Pull |
| Voltage rating | 30VDC |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Shell material | Thermoplastic |
| Contact material | Copper Alloy |
| Primary material | Plastic |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Shielding | Shielded |
All specifications
| Parameter | Value |
|---|---|
| Orientation | Keyed |
| Termination | Solder |
| Applications | Audio, Video |
| Positions | 6 |
| Shell size - insert | Mini DIN |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
