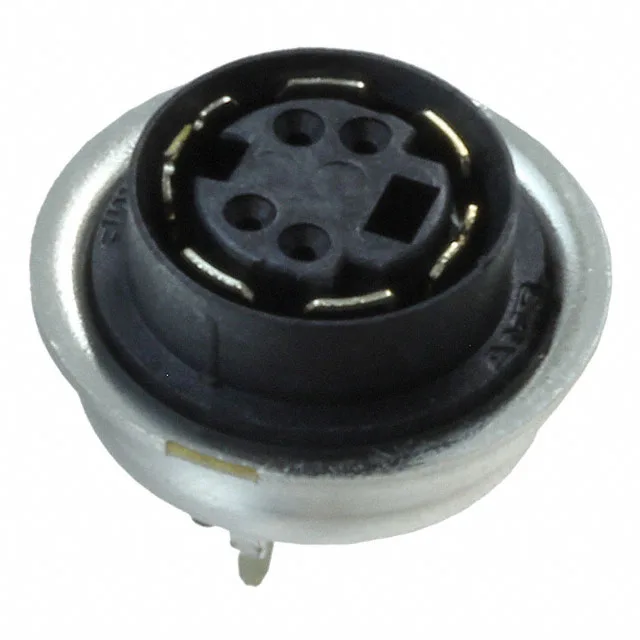

TE Connectivity AMP Connectors 5750317-2 — Circular Connectors

TE Connectivity 5750317-2 Mini DIN Receptacle, 4 Position

MPN5750317-2
Obsolete

TE Connectivity Mini DIN receptacle, 5750317-2, 4 position, female sockets, 1 A, 30 VDC, shielded, panel mount, through hole, solder termination, gold mating contacts, tray.

$8.8100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5750317-2 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

5750317-2 key specifications
ParameterValue
MountingPanel Mount, Through Hole
Connector typeReceptacle, Female Sockets
Fastening typePush-Pull
Voltage rating30VDC
Current rating1A
Mounting featureFlange
Operating temperature-55°C ~ 105°C
Shell materialBrass
Contact materialCopper Alloy
Primary materialMetal
Material flammability ratingUL94 V-0
PackageTray

All specifications

5750317-2 additional specifications
ParameterValue
FeaturesBoard Lock
ShieldingShielded
OrientationKeyed
TerminationSolder
ApplicationsAudio, Video
Positions4
Shell size - insertMini DIN
Contact finish - matingGold
Contact finish thickness - mating30.0µin (0.76µm)

Product details

4-Position Mini DIN Receptacle for Audio/Video Signal Duty

The gold-plated contacts (30.0 µin) carry 1 A at 30 VDC, suited for low-current signal paths rather than power delivery. A board lock on the solder side holds the connector in place during assembly and resists shear from cable strain.

Buyers should evaluate a pin-compatible Mini DIN receptacle from the same series or a cross-reference for new designs.

Shielded Shell and Keyed Orientation

The brass shell provides EMI shielding, and the keyed orientation prevents mis-mating — the insert is shaped so a Mini DIN plug only inserts one way.

Frequently asked questions

Is 5750317-2 obsolete and what is its replacement?

Yes, the 5750317-2 is listed as Obsolete. For existing designs, source the part through surplus or broker channels against an RFQ. For new designs, select an active Mini DIN receptacle with the same 4-position, shielded, panel-mount footprint.

Where can I buy 5750317-2?

Submit a request for current pricing and availability — stock is confirmed at quote time.

What connector mates with 5750317-2?

The 5750317-2 mates with a standard 4-position Mini DIN plug (male pin) of the same shell size. The keyed orientation and push-pull latch ensure correct alignment and retention.
