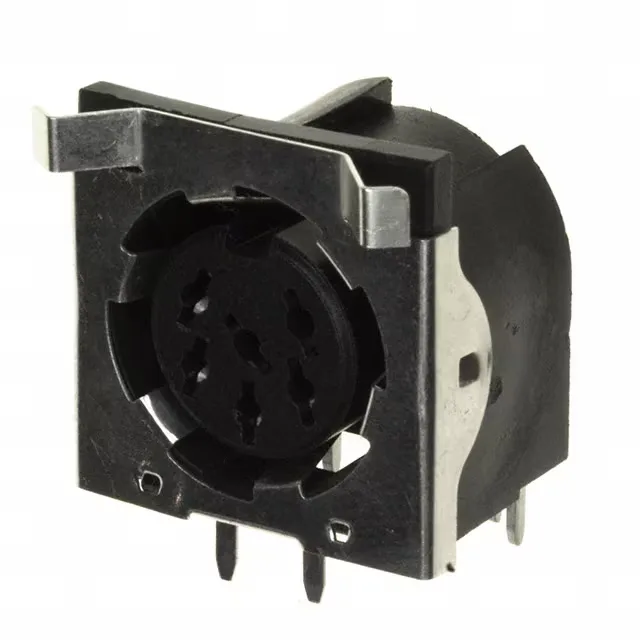

TE Connectivity AMP Connectors 5786676-1
MPN5786676-1
Active
CONN RCPT FMALE DIN 6POS SOLDER
$9.62Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 105°C |
| Shell material | Polyamide (PA), Nylon |
| Insert material | Polycarbonate (PC) |
| Contact material | Brass |
| Primary material | Plastic |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shielding | Shielded |
| Orientation | Keyed |
| Termination | Solder |
| Applications | Audio |
| Positions | 6 |
| Shell size - insert | DIN (240 Degree) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
