TE Connectivity AMP Connectors 5787252-1
MPN5787252-1
Active

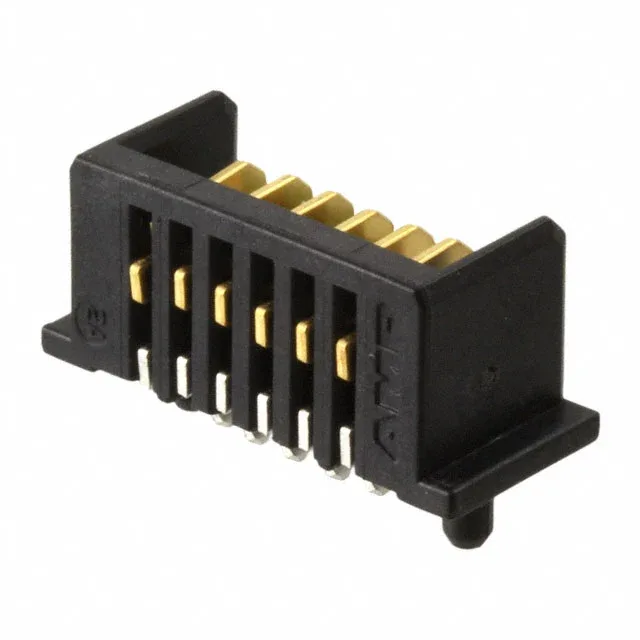

CONN HDR 6POS 2.00MM KINKED PIN
$8.56Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMulti-Directional Interconnection System (MDI)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Multi-Directional Interconnection System (MDI) |
| Mounting | Through Hole |
| Connector type | Header, Male Blades |
| Fastening type | Push-Pull |
| Current rating | 7 A |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Material - insulation | Syndiotactic Polystyrene (SPS) |
| Pitch | 0.079\" (2.00mm) |
| Package | Tube |
| Features | Board Guide |
| Termination | Kinked Pin |
| Contact finish | Gold |
| Rows | 1 |
| Positions | 6 |
| Contact finish thickness | 3.00µin (0.076µm) |
