TE Connectivity AMP Connectors 5787761-1 — USB, Type-C & HDMI Connectors

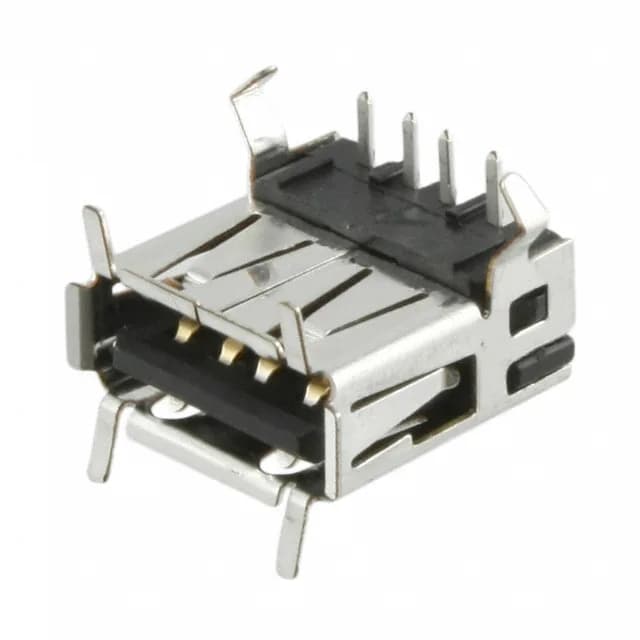

TE 5787761-1 USB-A Receptacle, 4 Contacts, 1A, Obsolete

MPN5787761-1
Obsolete

TE Connectivity, USB-A (USB TYPE-A) Receptacle, 5787761-1, 4 contacts, 1A per contact, 30VAC, Through Hole Right Angle, Solder, Gold or Gold-Palladium, Board Lock, 1500 mating cycles.

$1.6100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5787761-1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

5787761-1 specifications
ParameterValue
MountingThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC
Current rating1A per Contact
Positions4
Mounting featureHorizontal
Operating temperature-55°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageBox
FeaturesBoard Lock
TerminationSolder
Mating cycles1500
Contact finishGold or Gold-Palladium
Number of ports1

Product details

The TE Connectivity 5787761-1 is a single-port USB-A (USB TYPE-A) receptacle, 4 contacts, designed for through-hole right-angle mounting on a PCB.

Board Lock and Mating Cycles — What They Mean for Assembly

With 1500 mating cycles rated, this connector is built for applications that see regular plug/unplug — lab equipment, test fixtures, or field-service tools — not a one-time install. The gold or gold-palladium contact finish supports that cycle life by resisting fretting corrosion.

Obsolete — Sourcing Reality for 5787761-1

For BOM lines that still call out this part, supply is limited to surplus and broker-channel stock.

Frequently asked questions

Does 5787761-1 have board lock?

Yes, the 5787761-1 includes a board lock feature.
