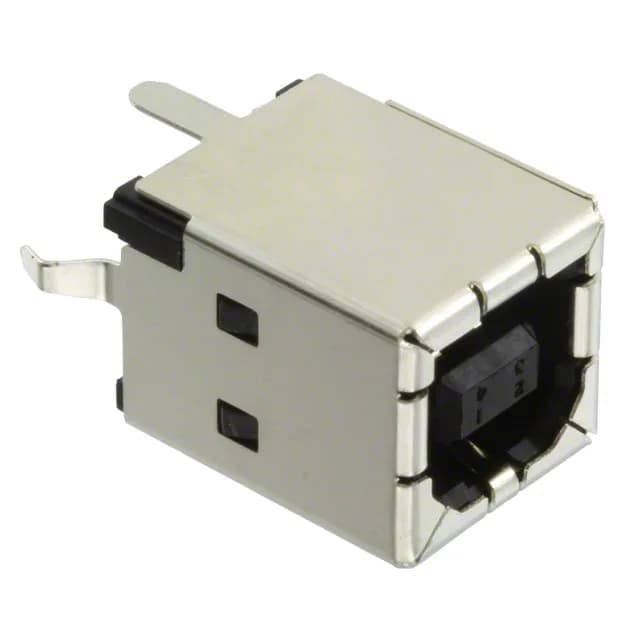

TE 5788336-2 USB-B Receptacle, 4 Contacts, Vertical

MPN5788336-2
Active

TE Connectivity 5788336-2 USB-B (USB Type-B) receptacle, 4 contacts, vertical through-hole, gold-plated contacts, board lock, USB 2.0, 1A per contact, 30VAC, UL94 V-0.

$3.4200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5788336-2 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5788336-2 specifications
ParameterValue
MountingThrough Hole
Connector typeUSB-B (USB TYPE-B)
Voltage - rated30VAC
Current rating1A per Contact
Positions4
Mounting featureVertical
Operating temperature-55°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Phosphor Bronze
Material flammability ratingUL94 V-0
GenderReceptacle
PackageBulk
FeaturesBoard Lock
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Vertical USB-B Receptacle with Board Lock for Through-Hole Mounting

It conforms to the USB 2.0 specification, supporting data rates up to 480 Mbps and power delivery up to 5 V at 1 A per contact. The gold-plated contacts resist corrosion and maintain signal integrity over repeated mating cycles — rated for 1500 cycles, which is above the typical USB connector lifespan.

USB 2.0 Standard — Not Backward Compatible with USB 3.0 Pinout

USB 3.0 Type-B connectors use a different physical shape (stacked or extended) with additional contacts for SuperSpeed data pairs. The 5788336-2 has 4 contacts arranged in the standard USB 2.0 pinout: VBUS, D-, D+, and GND. It will not mate with a USB 3.0 cable plug, nor does it support the higher data rates of USB 3.0. For USB 3.0 applications, a different connector family is required.

Frequently asked questions

Where can I buy 5788336-2?

The 5788336-2 is available to order through independent distribution. Submit an RFQ for current pricing and delivery — availability is confirmed at quote time.

Is 5788336-2 compatible with USB 3.0?

No. The 5788336-2 is a USB 2.0 connector with 4 contacts. USB 3.0 Type-B connectors have a different physical interface and additional contacts. It will not mate with a USB 3.0 cable plug and does not support USB 3.0 data rates.

What is the pinout of 5788336-2?

The 5788336-2 has 4 contacts arranged in the standard USB 2.0 Type-B pinout: pin 1 (VBUS, +5V), pin 2 (D-), pin 3 (D+), pin 4 (GND). This matches the USB 2.0 specification.
