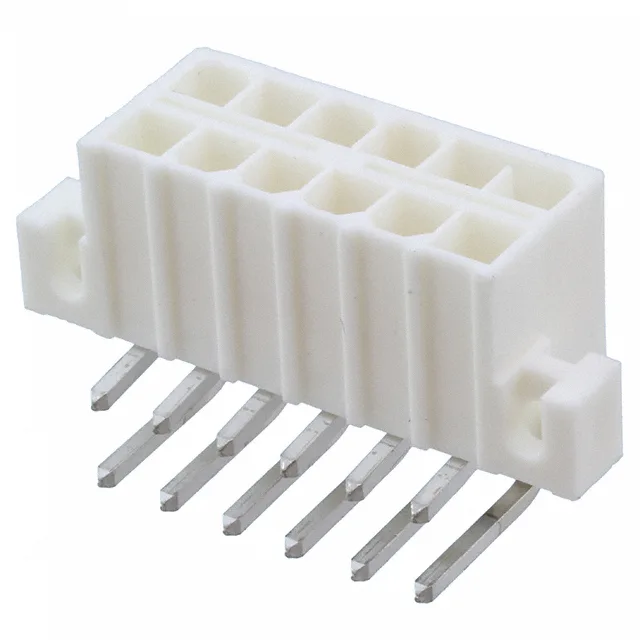

TE Connectivity AMP-DUAC header, order code 5794176-5, 12 positions (11 loaded), dual row, 0.165" (4.20mm) pitch, 600 VAC, gold-plated mating contacts (30.0µin), through-hole right-angle, solder termination.
TE AMP-DUAC 5794176-5 Header, 12 Pos, 4.20mm, Gold
MPN5794176-5
Active
TE Connectivity AMP-DUAC header, order code 5794176-5, 12 positions (11 loaded), dual row, 0.165" (4.20mm) pitch, 600 VAC, gold-plated mating contacts (30.0µin), through-hole right-angle, solder termination.
$5.5747Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-DUAC |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Operating temperature | -55°C~105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.461\" (11.70mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 12 |
| Row spacing - mating | 0.217\" (5.51mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.205\" (5.21mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is 5794176-5's listed style and series?
The style is Board to Board or Cable, and the series is AMP-DUAC.
What compliance documentation does TE Connectivity provide for 5794176-5?
The insulation material is Polybutylene Terephthalate (PBT) rated UL94 V-0. RoHS/REACH documentation is available from TE Connectivity on request.
