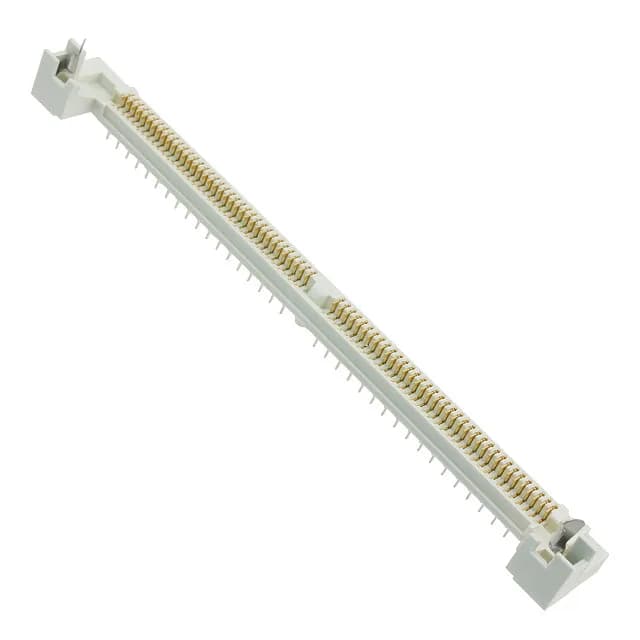

TE Connectivity AMP Connectors Micro-Edge SIMM connector, order code 5822097-3, 72 positions, 22° insertion angle, through-hole mount, gold-plated contacts, 30.0µin (0.76µm) contact finish thickness, box packaging.
| Parameter | Value |
|---|---|
| Series | Micro-Edge |
| Memory type | RAM |
| Mounting | Through Hole |
| Mounting feature | Normal, Standard - Top |
| Connector type | SIMM |
| Package | Box |
| Features | Board Guide, Latches |
| Card thickness | 0.047\" ~ 0.054\" (1.19mm ~ 1.37mm) |
| Contact finish | Gold |
| Insertion angle | 22° Angle |
| Positions | 72 |
| Contact finish thickness | 30.0µin (0.76µm) |
The 5822097-3 is the 72-position member of TE's Micro-Edge SIMM connector line, designed for through-hole mounting with a 22° angled insertion.
The connector accepts SIMM cards within a 0.047" to 0.054" (1.19mm to 1.37mm) thickness range, with onboard board guides and latches securing the module in place.
The 5822097-3 accepts SIMM cards with a thickness range of 0.047" to 0.054" (1.19mm to 1.37mm).
