SIMM connector for standard-top memory modules

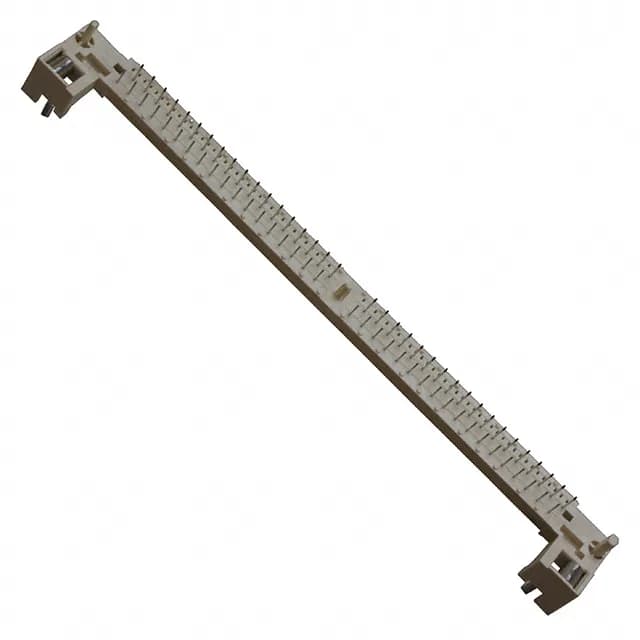

The 5822134-3 is the 72-position member of TE's Micro-Edge SIMM connector line, designed for RAM module insertion at a 22° angle. Through-hole mounting with a normal, standard-top configuration; the tin-plated contacts carry a 200.0µin (5.08µm) finish thickness.
Card thickness and board features
Accepts SIMM cards with thickness from 0.047" to 0.054" (1.19mm to 1.37mm). Board guide and latches are built into the housing; the connector meets MO-116 standard outline.
