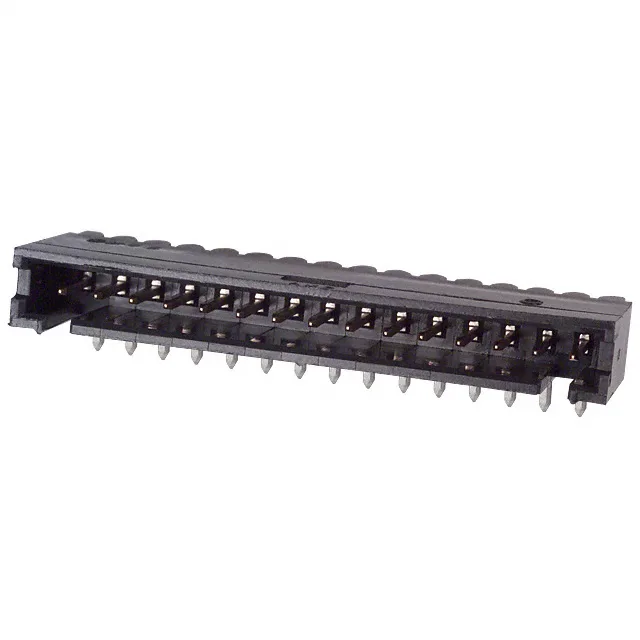

TE Connectivity AMP Connectors AMPMODU Mod II, 6-102203-2, Header, 15 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Shrouded - 4 Wall, Gold Mating Contacts, 3A, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.214\" (5.44mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 15 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0.100" pitch sets the board footprint — each pin lands on a 0.100" grid, and the right-angle orientation means the solder tails extend 0.110" (2.79mm) below the board. The 4-wall shroud prevents mis-mating and protects the pins if the receptacle is inserted at an angle.
The 6-102203-2's 15 µinch gold gives it a higher mating-cycle ceiling than the tin-plated sibling, which matters if the connector sees frequent disconnect/reconnect in the field.
The 4-wall shroud accepts the female housing, and the push-pull fastening means no latch is required — the shroud provides alignment and retention.
