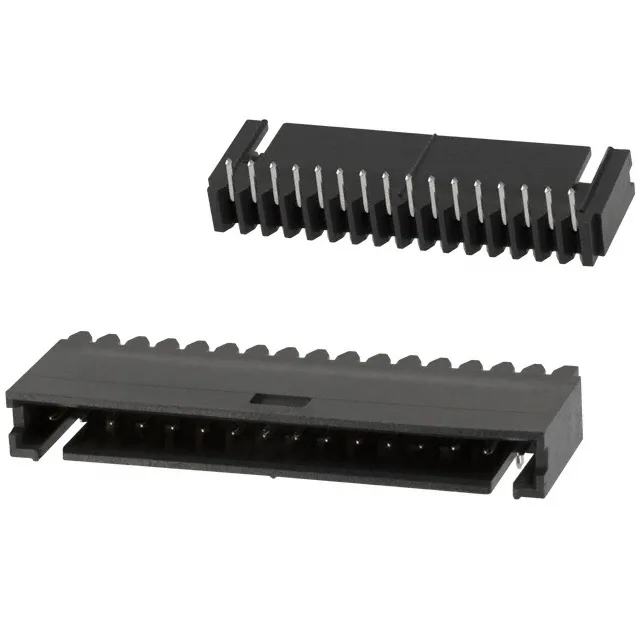

6-102523-4 TE Connectivity AMPMODU Mod II Header, 16 Pos

MPN6-102523-4
Active

TE Connectivity AMPMODU Mod II, 6-102523-4, 16-position single-row shrouded header, 2.54 mm pitch, right-angle through-hole, tin-plated male pins, rated 3 A per contact, UL94 V-0 black thermoplastic housing.

$6.3000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 6-102523-4 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6-102523-4 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.214\" (5.44mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

6-102523-4 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions16
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Contact finish - matingTin
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

The 2.54 mm (0.100 inch) pitch matches the legacy 0.100-inch grid — a standard footprint for board-to-board or wire-to-board interconnects on prototype boards and production PCBs alike.

Mounting and Retention — Right-Angle Through-Hole, No Latch

Retention is push-pull — no locking latch or screw. In a high-vibration environment, the mating connector should have a positive lock or the assembly should be secured with a cable tie or clamp.

The base product number is 102523; the dash number -4 specifies the 16-position, right-angle, tin-plated variant.

Frequently asked questions

Does 6-102523-4 have a locking feature for the mating connector?

No. The fastening type is push-pull — no latch, screw, or lock. The shrouded 4-wall housing provides alignment and pin protection, but the mating receptacle is held by friction only. For vibration-prone applications, consider a locking header or add external strain relief.
