AMPMODU Mod II 8-position shrouded header

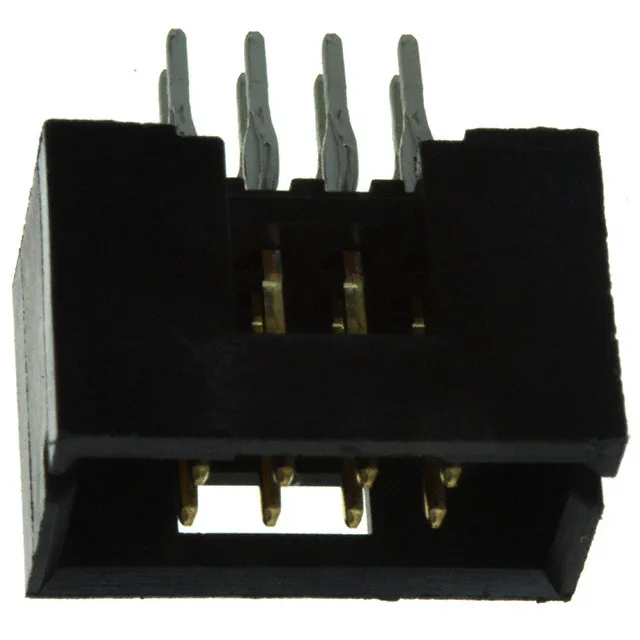

The 6-102557-1 is the 8-circuit, dual-row member of TE's AMPMODU Mod II header line, designed for board-to-board or cable connections with a shrouded 4-wall housing that protects the male pins during handling and mating. Rated 3 A per contact with gold-plated mating surfaces (30.0 µin) and tin-plated posts (100.0 µin), the header uses a press-fit and solder termination for through-hole mounting.
Position count and footprint across the series
Within the AMPMODU Mod II family, the 6-102557-1's 8 positions (all loaded) sit on a 0.100" (2.54 mm) pitch with 0.100" (2.54 mm) row spacing — the same footprint shared across the series, so the board layout is consistent regardless of circuit count.
