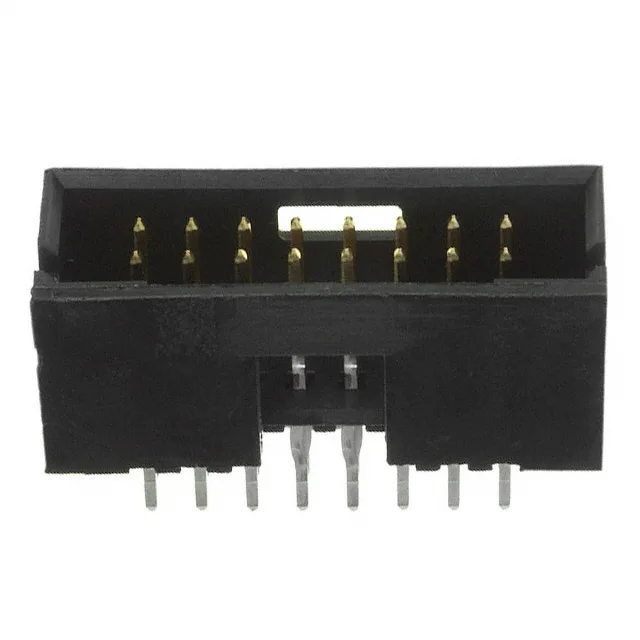

TE Connectivity AMPMODU Mod II header, order code 6-102557-4, 16 positions, dual row, 0.100" (2.54mm) pitch, 3A, gold-plated mating contacts, through-hole press-fit, solder termination, shrouded - 4 wall.
6-102557-4 TE AMPMODU Mod II Header, 16 Pos, 2.54mm
MPN6-102557-4
Active
TE Connectivity AMPMODU Mod II header, order code 6-102557-4, 16 positions, dual row, 0.100" (2.54mm) pitch, 3A, gold-plated mating contacts, through-hole press-fit, solder termination, shrouded - 4 wall.
$9.5534Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.250\" (6.35mm) |
| Overall contact length | 0.660\" (16.76mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.320\" (8.13mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 6-102557-4 and how do I get a price?
The 6-102557-4 is orderable through the distributor.
What compliance documentation does TE Connectivity provide for 6-102557-4?
RoHS and REACH compliance documentation is available from TE Connectivity for this part.
