The 6-102567-0: Through-hole termination with 0.180" (4.57mm) post length suits standard PCB thickness. The 0.100" pitch and dual-row layout balance contact density with trace routing clearance on two-layer boards. UL94 V-0 glass-filled thermoplastic housing holds the 70 positions in a 0.550" (13.97mm) insulation height.

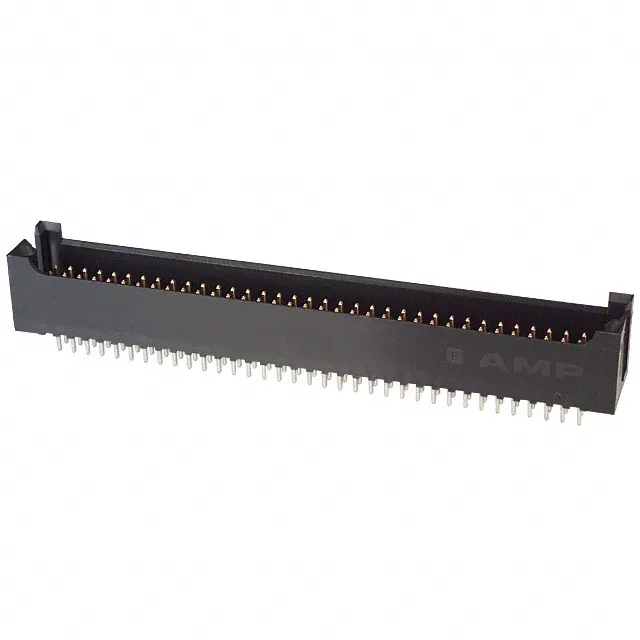

6-102567-0 TE AMPMODU Mod II Header, 70 Pos, 2.54mm
MPN6-102567-0
Active
TE Connectivity AMP Connectors AMPMODU Mod II header, order code 6-102567-0, 70 positions, dual row, 0.100" (2.54mm) pitch, 3 A, 250 VAC, gold-plated mating contacts, through-hole, solder termination.
$9.8602Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.550\" (13.97mm) |
| Insulation material | Thermoplastic, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 70 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.180\" (4.57mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What compliance documentation is available for 6-102567-0?
The housing material is rated UL94 V-0. RoHS and REACH compliance information is available from TE Connectivity upon request.
