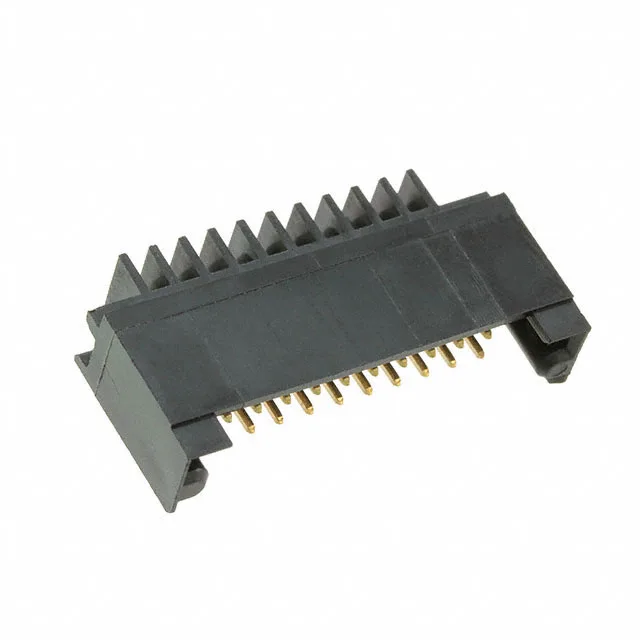

TE Connectivity AMPMODU Mod II, 20-position, 2-row, 2.54mm pitch, right-angle, shrouded header, gold-plated mating contacts, 3A, UL94 V-0, active production.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.319\" (8.10mm) |
| Insulation material | Polyester |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.320\" (8.13mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Submit an RFQ for current lead time and per-unit cost.
Termination is through-hole solder: the 0.125" (3.18mm) post length fits standard 1.6mm PCBs. The right-angle body requires the board footprint to account for the 8.10mm insulation height above the board surface.
The pitch is 0.100" (2.54mm) on both the mating and row spacing, and it has 20 positions arranged in 2 rows.
Yes, it has a 3-wall shrouded design that protects the male pins and guides the mating receptacle.
