30-Position Right-Angle Shrouded Header at 0.100" Pitch

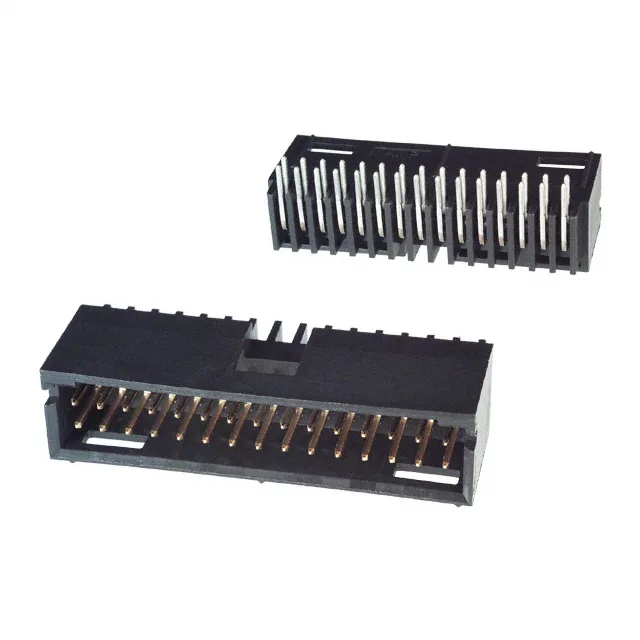

The 6-102617-3 is a 30-position, dual-row, right-angle header from the AMPMODU Mod II series. The shroud is four-wall, fully enclosing the pins. The detent lock on the top wall gives an audible click when the mating receptacle seats — you should hear it click. No secondary lock, but the detent holds the pair against casual vibration. Tin on the solder tails (100.0 µinch) wets well during wave or hand solder.
3 A Per Contact — Signal-Duty Ceiling
Rated 3 A per contact at 25 °C ambient. That current keeps the temperature rise within the UL94 V-0 thermoplastic housing material limit. This is a signal-level interconnect — not for power distribution. The wide operating range (-65°C to 105°C) covers industrial cabinet and outdoor telecom enclosures.
