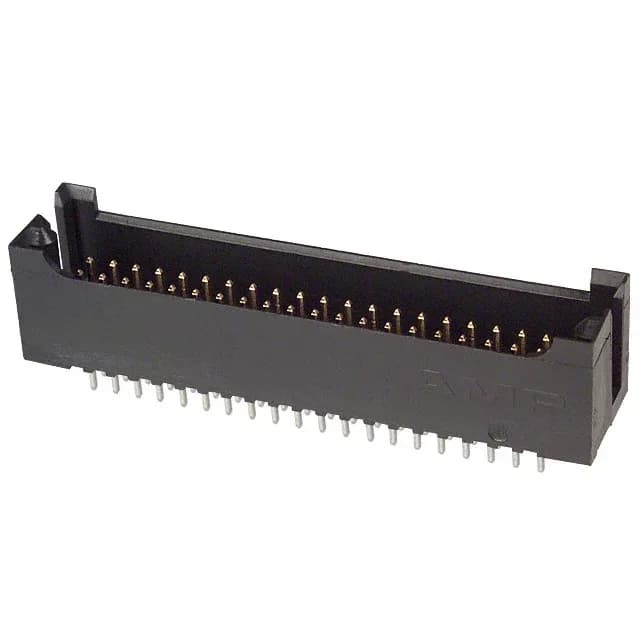

TE Connectivity AMPMODU Mod II header, 6-102692-3, 40-position dual-row, 0.100" (2.54 mm) pitch, shrouded 4-wall, through-hole solder, 30 µinch gold on the mating interface, rated 2 A per contact at 250 VAC.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 2A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.550\" (13.97mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.180\" (4.57mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 6-102692-3 is a 40-position, dual-row, shrouded 4-wall header from TE Connectivity's AMPMODU Mod II series. It mates with matching AMPMODU receptacle housings to form a board-to-board or wire-to-board interconnect. The through-hole solder tails lock into the PCB and take the mechanical strain off the contacts.
In a 40-position fully loaded connector, the total current budget is 80 A distributed across the two rows.
The 6-102692-3 is sourced to order through independent distribution. Current pricing and lead time are confirmed at the time of RFQ against your BOM quantity. No stock-holding claim is made; availability is verified per inquiry.
