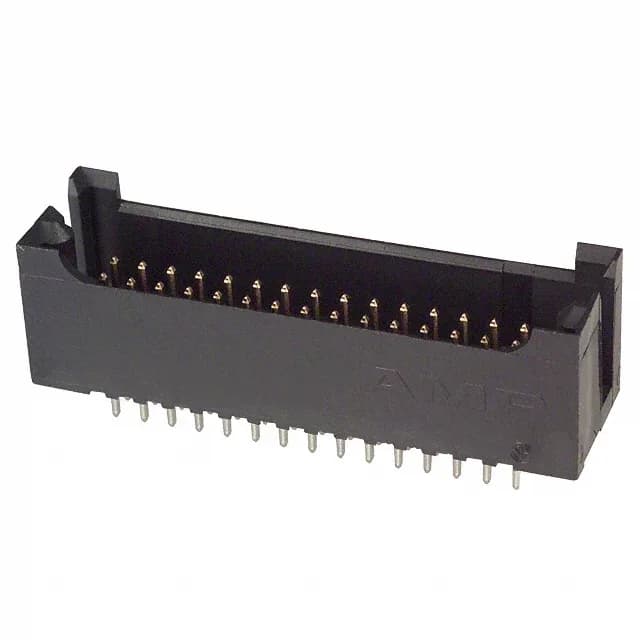

The 6-102692-7 is a 30-position, dual-row, shrouded header from the AMPMODU Mod II series, designed for board-to-board or cable-to-board connections on a 0.100-inch (2.54 mm) pitch. Gold plating on the mating surface (30.0 µin) supports repeated mating cycles without contact fretting, while the post finish is tin (100.0 µin) for reliable solder-joint formation.
Rated 2 A per contact at 250 VAC, this header is suited for signal-level interconnects rather than power delivery; the current per circuit is limited by the 2.54 mm pitch and the thermoplastic housing. The operating temperature range of -65°C to 105°C covers most indoor and industrial cabinet environments, with the UL94 V-0 glass-filled thermoplastic housing providing flame retardancy.
Mating and footprint compatibility
Through-hole termination with a 0.180-inch (4.57 mm) post length fits standard PCB thicknesses. Confirm the board hole pattern against the product drawing before layout.
