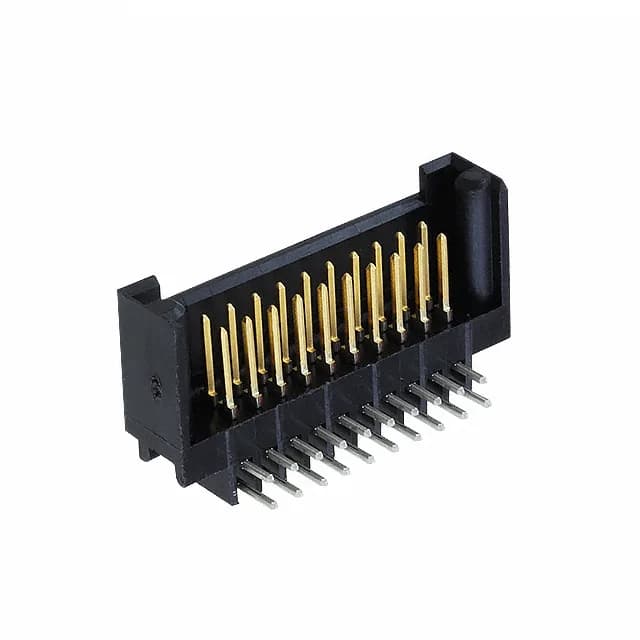

TE Connectivity AMPMODU Mod II, 6-102802-5, shrouded header, 20 positions, 2 rows, 0.100" (2.54 mm) pitch, through hole, right angle, male pin, gold mating finish, 2 A, 250 VAC, UL94 V-0, tube.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 2A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.319\" (8.10mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.320\" (8.13mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 3-wall shrouded design guides the mating connector and protects contacts from damage during blind-mate assembly. Insulation height is 0.319" (8.10 mm); the mating pin length is 0.320" (8.13 mm).
RoHS compliance is standard for TE's AMPMODU Mod II series, but verify the specific date code or certificate with your order.
