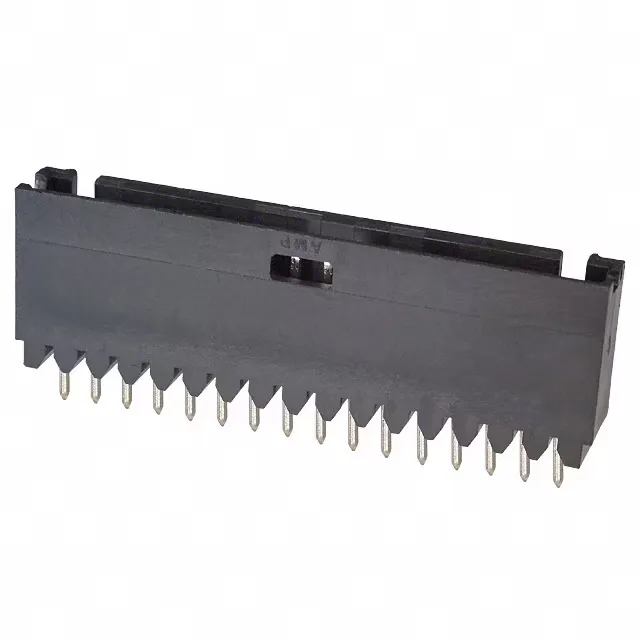

TE Connectivity AMP Connectors AMPMODU Mod II, 6-103080-4, 16-position, 2.54 mm pitch, shrouded header, male pin, through-hole, 3 A, tin plating, UL94 V-0, black thermoplastic.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.589\" (14.96mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 6-103080-4: It uses a 2.54 mm pitch — the standard 0.100-inch spacing — and carries a 3 A current rating per contact.
The 4-wall shroud guides the mating half and prevents misalignment during insertion — you should hear the latch click home on the mating housing's ramp.
No direct pin-compatible replacement has been announced by TE Connectivity for this specific part number. Any alternative would require verifying the pitch, circuit count, shrouding, and mounting style against your BOM — we can assist with cross-reference checks at quote time.
We can source 6-103080-4 through our independent supply network. No stock-holding commitment is made on the page.
