The 6-103166-1: The 0.135" (3.43mm) post length gives enough standoff for through-hole soldering on standard 1.6mm boards. Insulation height of 0.400" (10.16mm) and a mating pin length of 0.318" (8.08mm) define the z-height budget for the mating receptacle — confirm the receptacle's depth to ensure full pin engagement.

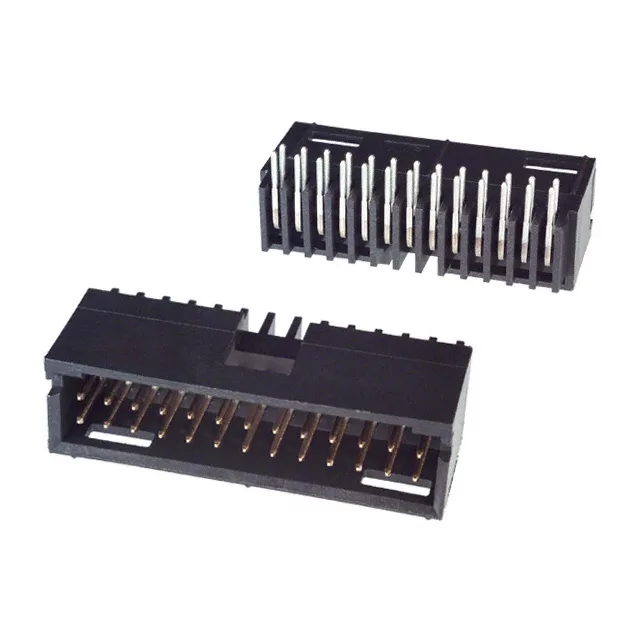

6-103166-1 TE Connectivity AMPMODU Mod II Header, 26-Pin
MPN6-103166-1
Active
TE Connectivity AMPMODU Mod II, Board to Board or Cable, Header, 26 Positions, 0.100" (2.54mm) Pitch, 2 Row, Through Hole, Right Angle, Gold Mating Finish, 3A
$9.8600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.400\" (10.16mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mounting type of 6-103166-1?
Through-hole, right-angle mounting. The pins are soldered into plated through-holes, and the right-angle body places the mating face parallel to the board.
Is 6-103166-1 RoHS compliant?
RoHS compliance is standard for TE Connectivity AMP Connectors on this series. Confirm with the RoHS certificate available at quote time.
