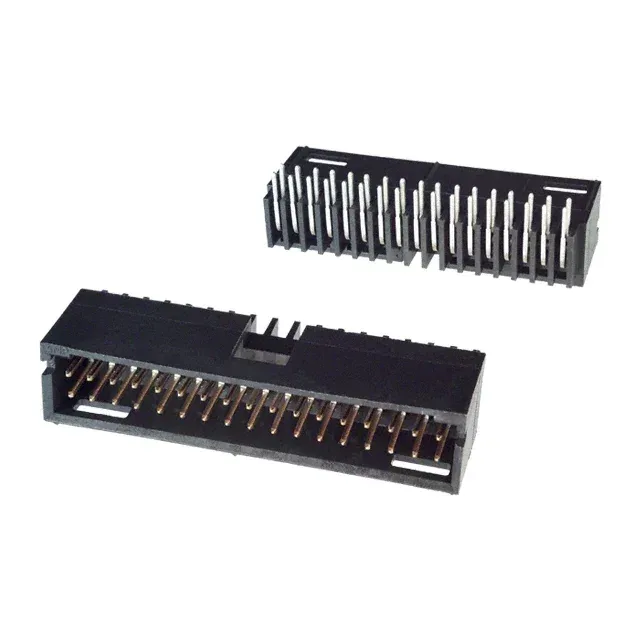

TE Connectivity AMP Connectors AMPMODU Mod II, 6-103166-5, Header, 34 Positions, 2.54 mm Pitch, Through Hole Right Angle, Shrouded - 4 Wall, Gold Mating Finish, Detent Lock, Tray
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.400\" (10.16mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 34 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The mating contacts are plated with 30.0 µin gold over phosphor bronze, rated for 3 A per contact — the gold layer supports repeated mating cycles without oxidation, while the tin-plated solder tails (100.0 µin) ensure reliable soldering to the PCB.
All positions are loaded.
Yes, it is a shrouded header with a 4-wall shroud and a detent lock for secure mating. The shroud protects the male pins and guides the mating receptacle.
