Right-Angle Board-to-Board Header for Tight Board Stacks
The insulation height of 0.214" (5.44 mm) sets the z-height budget above the board — critical when routing cables or stacking boards in a confined enclosure.

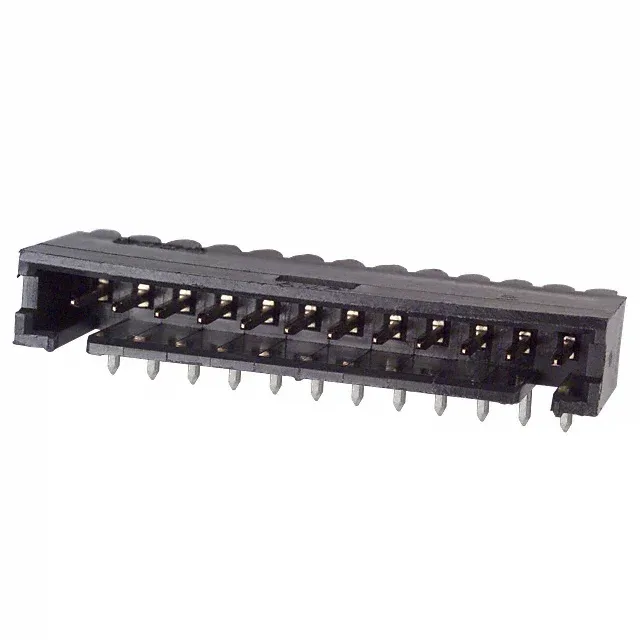

6-103361-0 TE Connectivity AMPMODU Mod II Header, 12 Pos
MPN6-103361-0
Active
TE Connectivity AMP Connectors AMPMODU Mod II, Header, 12 Positions, 0.100" (2.54 mm) Pitch, Through Hole, Right Angle, Gold Mating Contact, 3 A, UL94 V-0
$6.6700Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.214\" (5.44mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 6-103361-0?
No stock-holding claim; quoted per BOM quantity.
