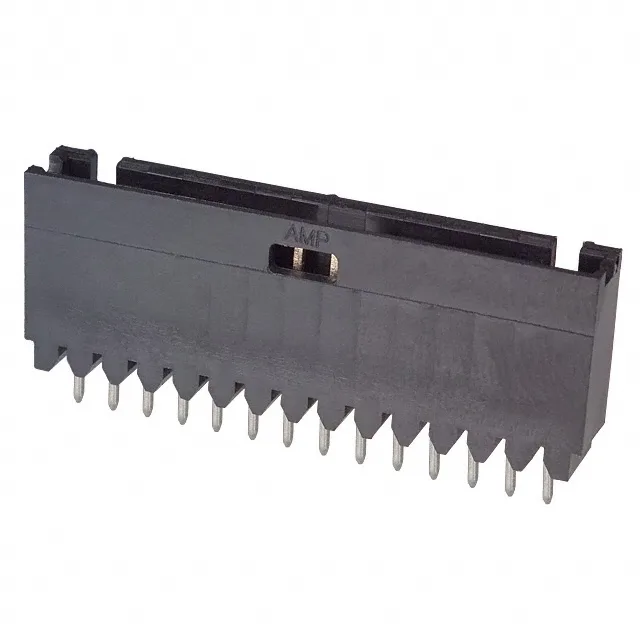

TE Connectivity AMPMODU Mod II, 14-position single-row shrouded header, 0.100" (2.54 mm) pitch, through-hole solder termination, gold-plated mating contacts, rated 3 A, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.589\" (14.96mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 6-103414-2: This is a 14-position, single-row, shrouded header from the AMPMODU Mod II series.
This header mates with AMPMODU Mod II receptacles and other compatible 0.100" pitch socket housings.
This header mates with AMPMODU Mod II receptacles and compatible 0.100" pitch socket housings from the same series. The push-pull retention means no secondary latch; the shroud guides the mating half.
