TE Connectivity AMP Connectors 6-103634-1 — Pin Headers

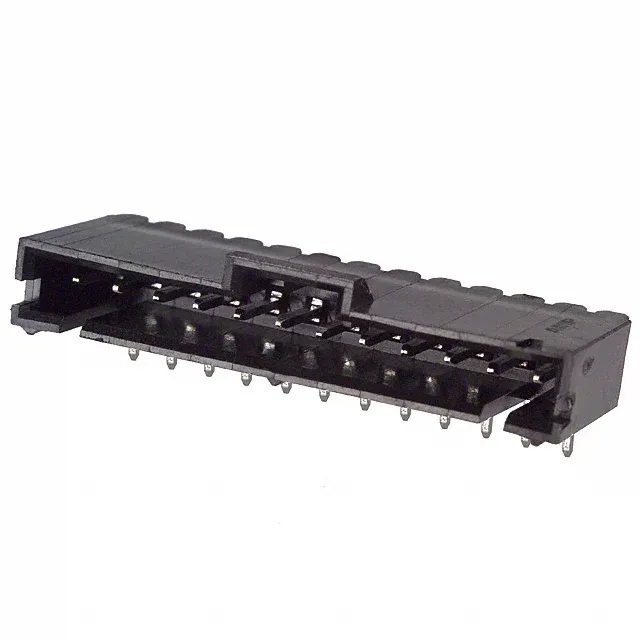

6-103634-1 TE Connectivity AMPMODU MTE 12-Position

MPN6-103634-1
Active

TE Connectivity AMPMODU MTE, 12-position, 0.100" (2.54 mm) pitch, right-angle, shrouded header, tin-plated contacts, 3 A, through-hole solder termination.

$2.5400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 6-103634-1 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

6-103634-1 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.200\" (5.08mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

6-103634-1 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions12
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board-fit and routing for a 12-position right-angle header

The 6-103634-1: With 12 positions loaded in a single row, the header occupies roughly 1.2 inches of board edge. The 0.130" (3.30 mm) post length provides a solid solder joint for the through-hole process.

Rated 3 A per contact — typical for a tin-plated signal header at this pitch.

RoHS compliant per the listing.

Mates with AMPMODU MTE receptacle housings that accept 22-30 AWG crimp terminals. Through-hole solder termination — no press-fit or surface-mount option.

Frequently asked questions

Is 6-103634-1 suitable for automotive applications?

Yes — the header is listed for automotive, general purpose, medical, and telecommunications use. The -65°C to 105°C range and UL94 V-0 housing support underhood and interior automotive environments, though the tin plating limits mating cycles compared to gold.
