TE Connectivity AMP Connectors 6-103634-3 — Pin Headers

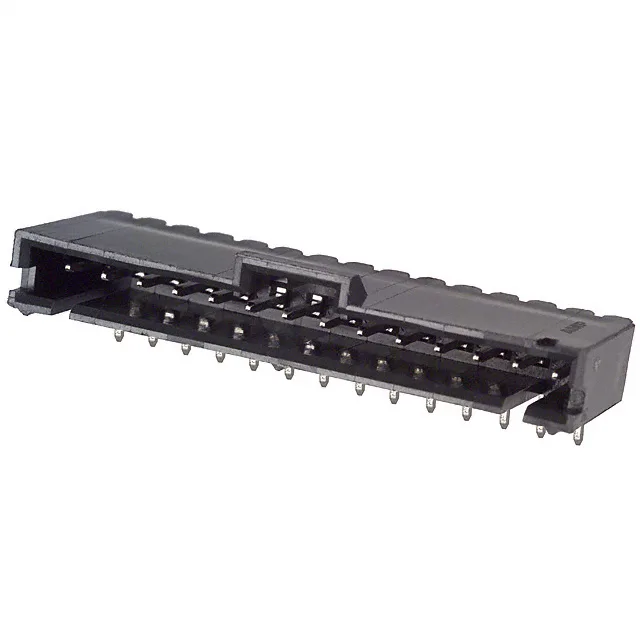

6-103634-3 TE Connectivity AMPMODU MTE Header, 14 Pos

MPN6-103634-3
Active

TE Connectivity AMPMODU MTE shrouded header, 14 circuits, 0.100" (2.54 mm) pitch, 3 A, tin-plated male pins, right-angle through-hole, latch holder, keying slot, UL94 V-0, RoHS, active.

$2.7400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 6-103634-3 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

6-103634-3 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.200\" (5.08mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

6-103634-3 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions14
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

It mates with AMPMODU MTE receptacle housings for board-to-board or cable-to-board connections. The keying slot prevents cross-mating with non-keyed receptacles on multi-header boards.

How it compares to nearby siblings

Compared to the 1394090-1 (6 positions, 0.112" pitch, 39.4 µin tin), the 6-103634-3 offers more circuits (14 vs 6) at a finer pitch (0.100" vs 0.112"). The thicker tin plating (100.0 µin vs 39.4 µin) gives better corrosion resistance in the same package style. Against the 1376366-8 (8 positions, 0.087" pitch, 5 A), the 6-103634-3 has a wider pitch (0.100" vs 0.087") and lower per-contact current (3 A vs 5 A), but carries more circuits (14 vs 8) in the same single-row right-angle format.

Frequently asked questions

Is 6-103634-3 RoHS compliant?

Yes, the 6-103634-3 is RoHS compliant per the manufacturer's listing.

What is the pitch and position count of 6-103634-3?

The pitch is 0.100" (2.54 mm) and the header has 14 positions, all loaded in a single row.
