Right-Angle Shrouded Header for Board-Edge Signal Routing

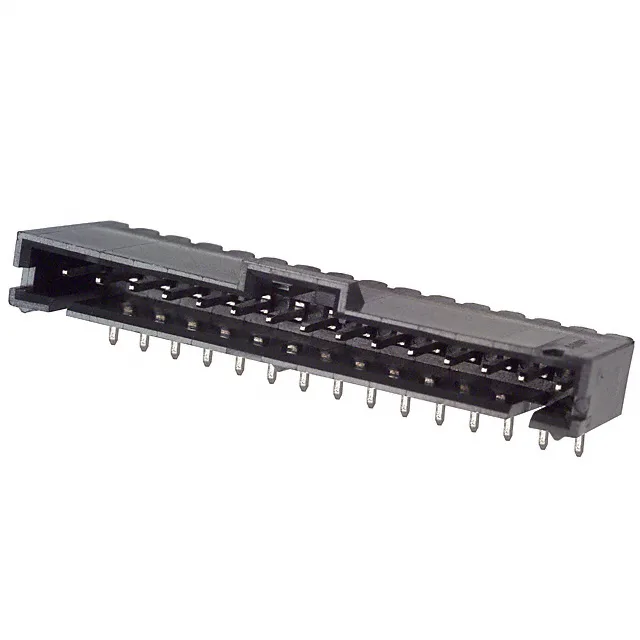

The 6-103634-4: The 4-wall shrouding with a keying slot protects the male pins from physical damage during handling and prevents mis-mating with an incorrectly keyed receptacle.
Board Layout and Mounting Considerations
Through-hole termination with a 0.130" (3.30mm) post length provides a robust solder joint for manual or wave-solder assembly. The right-angle body means the header overhangs the board edge by the insulation height of 0.200" (5.08mm) — account for this in enclosure clearance and mating connector access. Tube packaging is standard for this part, which suits hand-insertion or vibratory bowl feeding on a through-hole line. There is no tape-and-reel option for automated pick-and-place — plan for manual placement or a tube-fed insertion machine.
