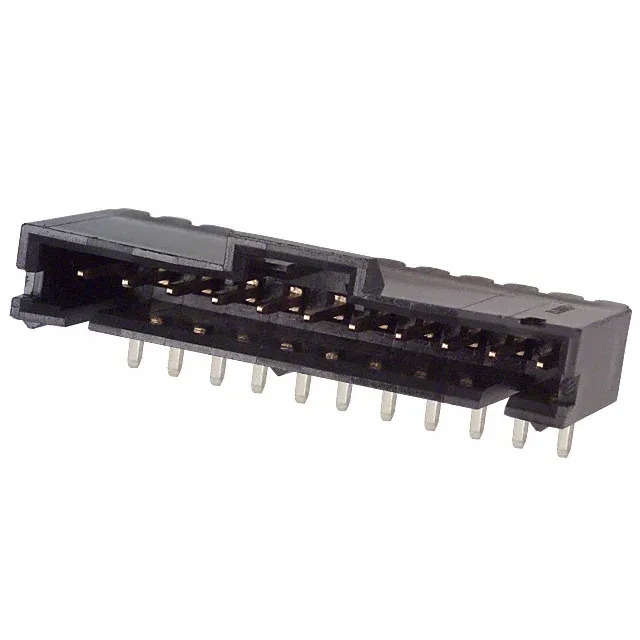

TE Connectivity AMP Connectors AMPMODU MTE header, 6-103635-0, 11 positions, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded, gold mating finish, 3A, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The contact mating length is 0.230" (5.84mm), and the post length is 0.130" (3.30mm) — enough for standard through-hole solder joints on a typical 1.6mm PCB.
The key difference: 1394090-1 uses a 0.112" (2.85mm) pitch and carries 6 positions with tin mating finish — so it's a wider pitch, fewer circuits, and lower mating-cycle life. For a 2.54mm pitch, 11-position, gold-plated requirement, 6-103635-0 is the correct match.
6-103635-0 is available through independent distribution. Submit an RFQ for current availability and pricing.
This header mates with AMPMODU MTE receptacle housings that accept crimp terminals. The latch holder on the header engages the corresponding latch on the receptacle for a vibration-resistant connection.
Through-hole, right-angle. The pins are perpendicular to the board, and the header is soldered into plated through-holes.
