TE Connectivity AMP Connectors 6-103639-3 — Pin Headers

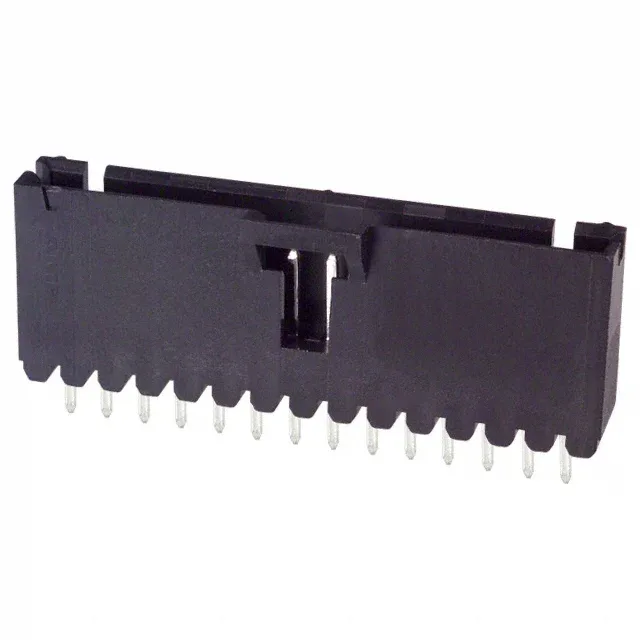

6-103639-3 TE AMPMODU MTE Header 14 Pos 2.54mm Tin

MPN6-103639-3
Active

TE Connectivity AMP Connectors AMPMODU MTE header, 6-103639-3, 14 positions, 0.100" (2.54mm) pitch, single row, shrouded 4-wall, through-hole solder, tin-plated male pins, rated 3 A, -65°C to 105°C, UL94 V-0.

$2.4200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 6-103639-3 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

6-103639-3 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.535\" (13.60mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

6-103639-3 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions14
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Overall contact length0.545\" (13.84mm)
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board Fit and Circuit Count

The 6-103639-3: All 14 positions are loaded, so the BOM line matches the circuit count directly — no unpopulated positions to account for in the harness layout.

Current, Temperature, and Plating

Rated 3 A per contact with tin-on-tin mating finish (100 µinch on both sides).

This header mates with AMPMODU MTE receptacle housings that accept 22–30 AWG crimp terminals (sold separately). The keying slot prevents mis-mating with non-keyed receptacles in multi-connector panels.
