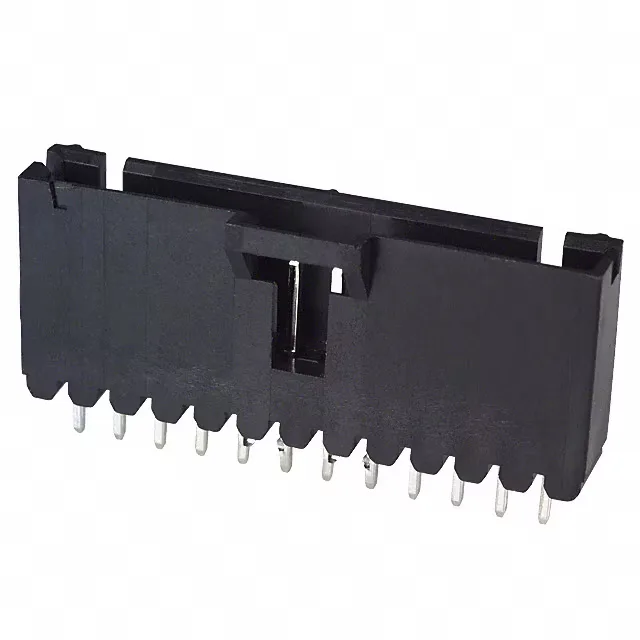

12-Position Shrouded Header with Latch Holder
The 6-103669-1: The latch holder provides audible positive retention, reducing the risk of partial mate in harness assembly.
Through-Hole Mounting with Press-Fit Option
Termination is through-hole with both press-fit and solder options listed — the press-fit variant avoids solder joint fatigue in high-vibration environments, while the solder tail (0.130" post length) allows conventional wave-solder assembly. The keying slot prevents mismating with non-keyed receptacles — a practical safeguard in multi-connector panels where assembly errors cost time. Insulation height of 0.535" (13.60mm) gives clearance for the latch mechanism above the board surface.
