12-position shrouded header in the AMPMODU MTE line
The 6-103735-1 is the 12-circuit member of TE's AMPMODU MTE header series, a single-row shrouded board-to-board or cable interconnect on 2.54 mm pitch.

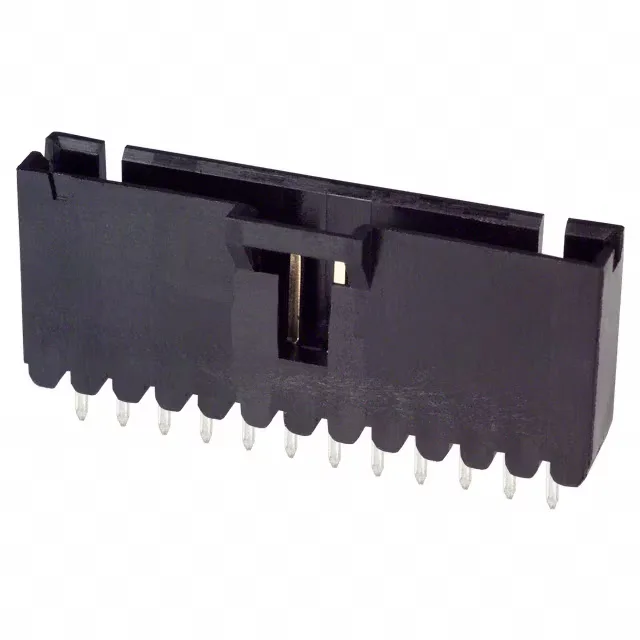

TE AMPMODU MTE 6-103735-1 Header, 12-Pos 2.54mm
MPN6-103735-1
Active
TE Connectivity AMPMODU MTE header, order code 6-103735-1, 12 positions, single row, 2.54 mm pitch, 3 A, gold-plated mating contacts, through-hole vertical, solder termination, shrouded - 4 wall, latch holder.
$3.0900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 6-103735-1 and how do I get a price?
6-103735-1 is orderable through TE Connectivity AMP Connectors distribution channels. Request a quote for current pricing and lead time against the BOM quantity.
