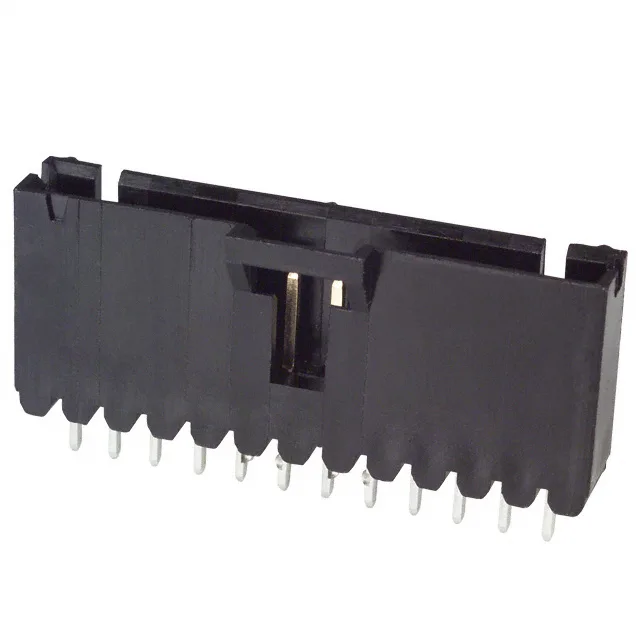

TE Connectivity AMP Connectors AMPMODU MTE header, 12 positions, 0.100" (2.54 mm) pitch, single-row, shrouded, male pin, through-hole, press-fit or solder termination, gold mating, tin tail, black thermoplastic UL94 V-0, -65°C to 105°C, 3 A.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 6-103908-1: The four-wall shroud and keying slot prevent mis-mating with the wrong receptacle — a common cause of field rework in board-to-board and wire-to-board stacks.
The contact length — 0.230" mating, 0.130" post, 0.545" overall — sets the board thickness and receptacle engagement depth.
RoHS compliant.
This is a shrouded header from the AMPMODU MTE series. It mates with AMPMODU MTE receptacles — typically the 2.54 mm pitch, 12-position, single-row housings. Confirm the receptacle part number against your BOM.
Yes, the style is listed as Board to Board or Cable. The shrouded header and keying slot support both board-to-board stacking and wire-to-board cable assemblies using the matching AMPMODU MTE receptacle and crimp terminals.
