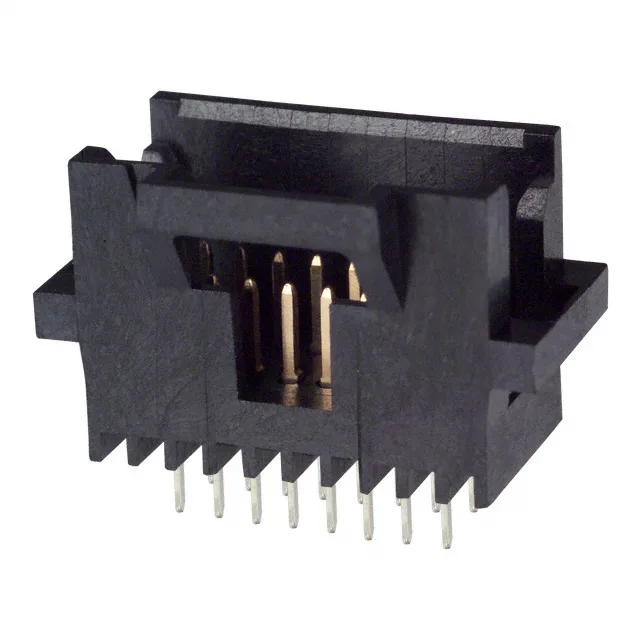

TE Connectivity AMPMODU System 50 shrouded header, 16 positions, 0.050" (1.27mm) pitch, through-hole, gold mating finish, latch holder, UL94 V-0, -65°C to 105°C.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 30VAC |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 6-104068-0: The 0.050" (1.27mm) pitch on this 16-position, dual-row header sets the PCB footprint and the per-contact current ceiling.
The latch holder fastening type keeps the mated pair engaged under vibration — relevant for automotive and industrial applications where shock or cable strain could otherwise separate an unlatched header.
ROHS3 compliant.
It is a 16-position, dual-row header with all positions loaded. The row spacing is 0.100" (2.54mm) and the mating pin length is 0.125" (3.18mm).
The mating pitch is 0.050" (1.27mm), with a row-to-row spacing of 0.100" (2.54mm).
Yes, it is a shrouded - 2 wall header, which provides pin protection and guides the mating receptacle during alignment.
