TE Connectivity AMP Connectors 6-104068-2 — Pin Headers

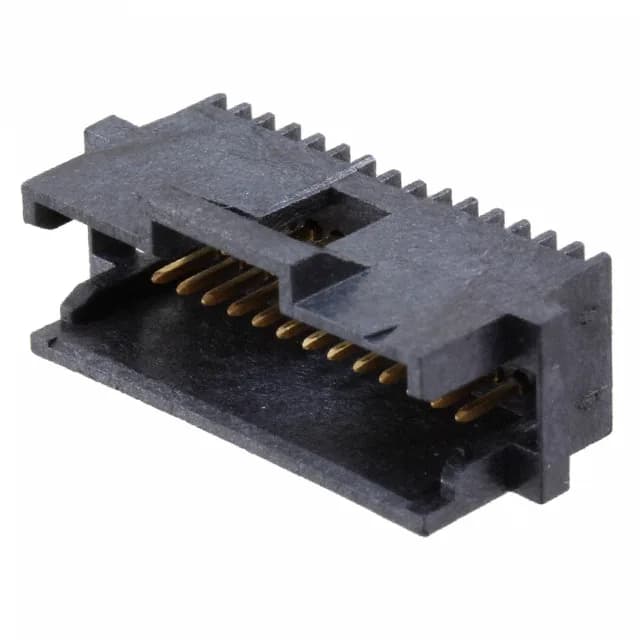

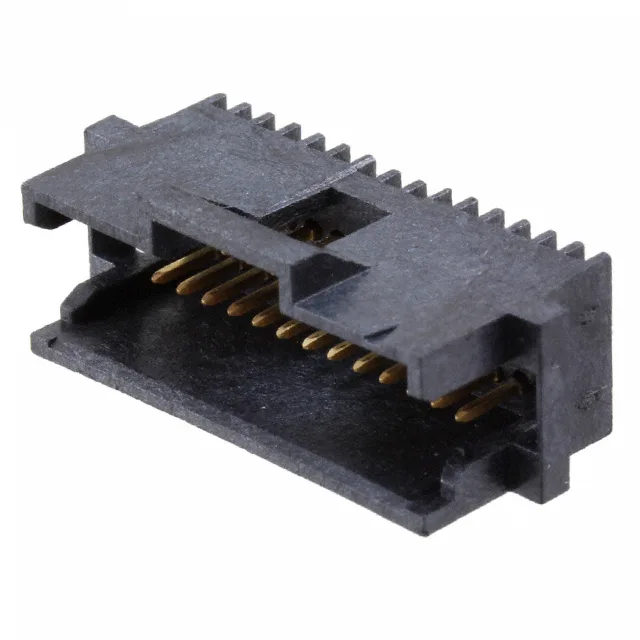

6-104068-2 TE Connectivity AMPMODU System 50 Header, 26 Pos

MPN6-104068-2
Active

TE Connectivity AMPMODU System 50 header, 6-104068-2, 26 positions, 2 rows, 0.050" (1.27 mm) pitch, through-hole, shrouded 2-wall, latch holder, 30 µinch gold mating finish, UL94 V-0, -65°C to 105°C.

$8.9200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU System 50
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

6-104068-2 key specifications
ParameterValue
SeriesAMPMODU System 50
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating30VAC
Operating temperature-65°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.390\" (9.91mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

6-104068-2 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
ShroudingShrouded - 2 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeCircular
Rows2
Pitch0.050\" (1.27mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.100\" (2.54mm)
Contact finish - matingGold
Contact length - mating0.125\" (3.18mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

1.27 mm pitch, 26-position header for dense board-to-board routing

The 6-104068-2: The 0.050" (1.27 mm) pitch on this 26-position, 2-row header sets the board footprint for high-density signal routing — the tight pitch keeps the connector footprint small, which frees up PCB real estate for other components.

Through-hole solder termination and board-mount fit

How this header compares to peer 1-1871673-2

The 6-104068-2 at 26 positions and 1.27 mm pitch is the denser, higher-cycle option for signal-heavy interconnects.

Frequently asked questions

Where can I buy 6-104068-2?

6-104068-2 is available through independent distribution.

What is the pitch of 6-104068-2?

The mating pitch is 0.050" (1.27 mm) with a row spacing of 0.100" (2.54 mm).
