TE Connectivity AMP Connectors 6-104068-8 — Pin Headers

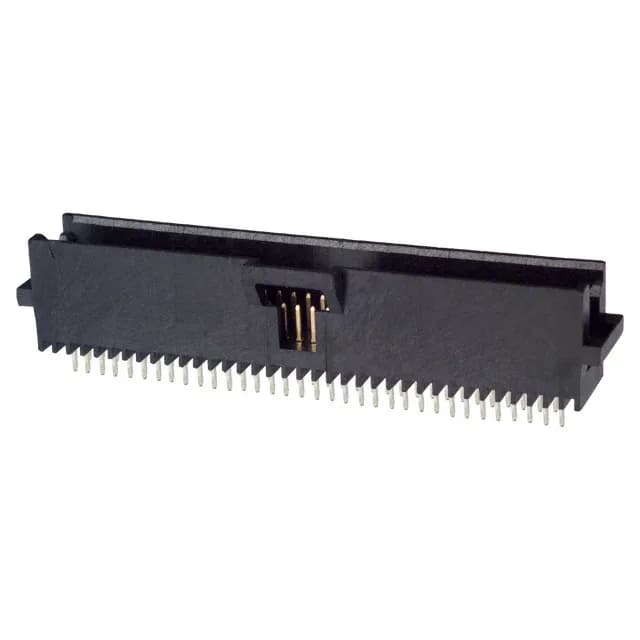

6-104068-8 TE AMPMODU System 50 Header 68 Pos 1.27mm

MPN6-104068-8
Active

TE Connectivity AMPMODU System 50 header, 6-104068-8, 68 positions, 1.27 mm pitch, shrouded 2-wall, through-hole solder termination, gold-plated mating contacts, latch holder, black UL94 V-0 housing, -65°C to 105°C, ROHS3 compliant.

$24.4900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU System 50
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

6-104068-8 key specifications
ParameterValue
SeriesAMPMODU System 50
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating30VAC
Operating temperature-65°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.390\" (9.91mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

6-104068-8 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
ShroudingShrouded - 2 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeCircular
Rows2
Pitch0.050\" (1.27mm)
Positions68
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.100\" (2.54mm)
Contact finish - matingGold
Contact length - mating0.125\" (3.18mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

68-position, 1.27 mm pitch header with latch holder

The 6-104068-8 is a 68-position, dual-row header from TE's AMPMODU System 50 series, on a 1.27 mm pitch with a 2.54 mm row spacing. In a telecom or automotive harness, that latch is the difference between a connection that stays mated and one that walks loose over thermal cycles.

Gold mating finish and 30 VAC signal ceiling

Rated at 30 VAC, this header is a signal-level interconnect — it suits low-voltage data, control, and sensor lines, not power distribution. The 30 VAC ceiling matches the typical bus voltage in telecom backplanes and medical instrumentation.

Through-hole termination and UL94 V-0 housing

Frequently asked questions

What is the pitch and number of positions of 6-104068-8?

The 6-104068-8 is a 68-position header on a 1.27 mm pitch, dual-row, with a 2.54 mm row spacing.

Is 6-104068-8 RoHS compliant?

Yes, the 6-104068-8 is ROHS3 compliant.

Can 6-104068-8 be used in automotive applications?

Yes, the 6-104068-8 is listed for automotive, general purpose, medical, and telecommunications applications. The -65°C to 105°C range and UL94 V-0 housing support automotive cabin and underhood-adjacent environments.
