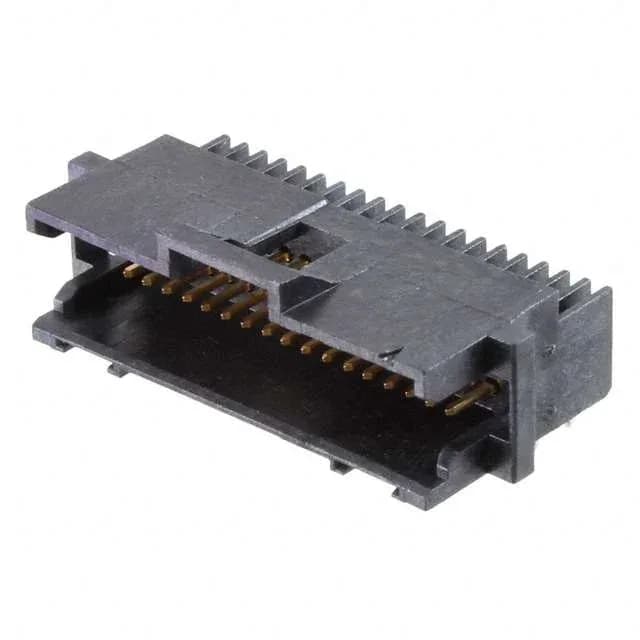

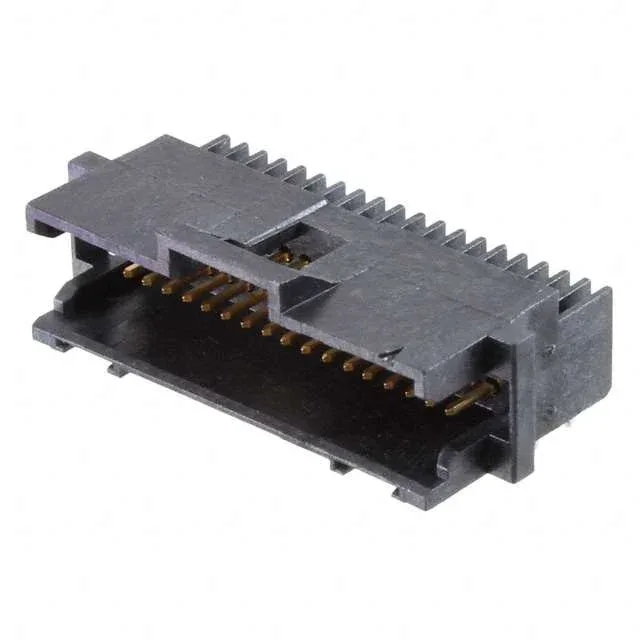

TE Connectivity AMP Connectors AMPMODU System 50 header, 6-104069-4, 34 positions, 1.27 mm pitch, dual-row, through-hole right-angle, gold mating finish, shrouded 2-wall with latch holder.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 30VAC |
| Operating temperature | -65°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Guide |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 34 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 6-104069-4: This is a 34-position, dual-row, right-angle pin header from the AMPMODU System 50 series — a board-to-board or cable interconnect platform. The 1.27 mm (0.050") mating pitch and 2.54 mm (0.100") row spacing set the PCB footprint: a dense, fine-pitch layout that routes signals through a compact board edge. Rated 30 VAC, with a UL94 V-0 thermoplastic housing and an operating temperature range from -65°C to 105°C.
Availability and current pricing confirmed at quote time — submit an RFQ for this part number.
