TE Connectivity AMP Connectors 6-104074-1 — Pin Headers

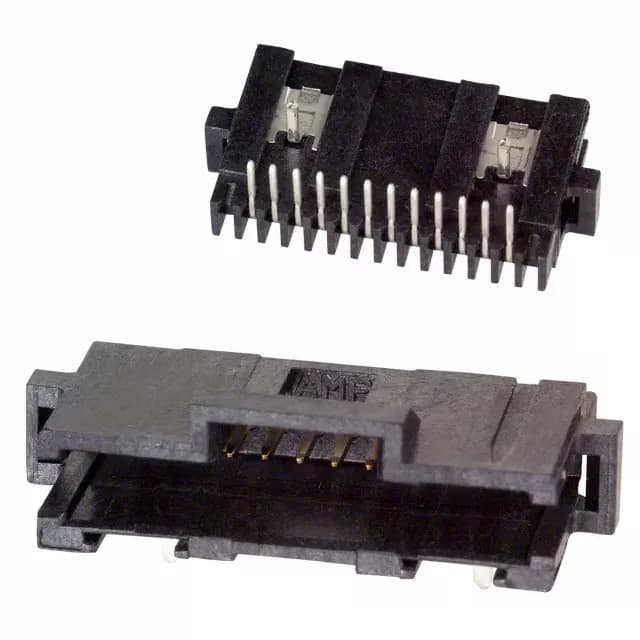

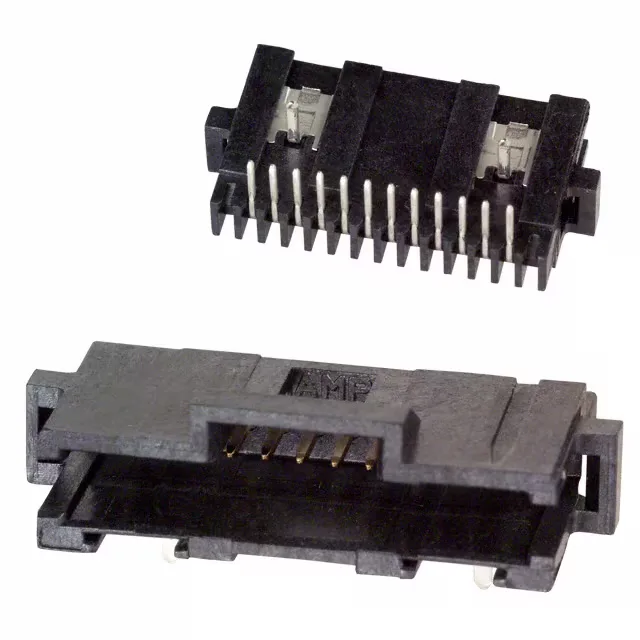

6-104074-1 TE Connectivity AMPMODU System 50 Header, 12 Pos

MPN6-104074-1
Active

TE Connectivity AMPMODU System 50 header, 6-104074-1, 12 positions, 1.27mm pitch, right-angle through-hole, shrouded 2-wall, gold-plated male pins, rated 30VAC, UL94 V-0.

$3.9900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 6-104074-1 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPMODU System 50
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

6-104074-1 key specifications
ParameterValue
SeriesAMPMODU System 50
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Voltage rating30VAC
Operating temperature-65°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.190\" (4.83mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

6-104074-1 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesBoard Guide
ShroudingShrouded - 2 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeCircular
Rows1
Pitch0.050\" (1.27mm)
Positions12
Contact finish - postTin
Contact length - post0.100\" (2.54mm)
Contact finish - matingGold
Contact length - mating0.125\" (3.18mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

1.27mm Pitch, Right-Angle, 12-Position Header

The 6-104074-1: This is a 12-position, single-row header from the AMPMODU System 50 series, with a 0.050" (1.27mm) mating pitch that sets the board footprint for dense signal routing.

Gold-Plated Mating Interface for Repeated Connect Duty

The post tails are tin-plated (150.0µin) for reliable solder wetting into the through-hole.

How This Compares to Peer 1394090-1

The 6-104074-1 packs twice the circuit count at half the pitch, with gold plating for higher mating-cycle reliability — a denser, more durable choice for signal-level interconnects.

Frequently asked questions

Is 6-104074-1 RoHS compliant?

Yes, it is RoHS compliant per the manufacturer's listing.

What is the mating female connector for 6-104074-1?

This is a male pin header from the AMPMODU System 50 series. The mating half is a female socket receptacle from the same series with a 1.27mm pitch, 12 positions, and a latch-compatible housing.
