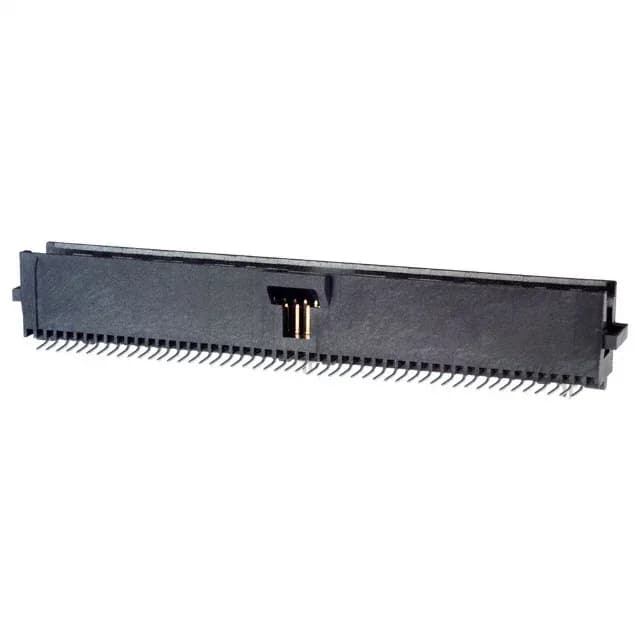

TE Connectivity AMPMODU System 50 header, 6-104549-0, 100 positions, 2 rows, 0.050" (1.27 mm) pitch, surface mount, gold mating contacts, board lock, shrouded, UL94 V-0, -65°C to 105°C.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 30VAC |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.435\" (11.05mm) |
| Insulation material | Polyphthalamide (PPA) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 100 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 6-104549-0: The 0.050" (1.27 mm) pitch on this 100-position, 2-row header sets the board footprint density.
No official pin-compatible replacement or second source is recorded — the BOM position should be locked to this order code.
Shrouded 4-wall design with latch holder fastening — mates with the corresponding AMPMODU System 50 receptacle. The latch provides audible feedback on full engagement and resists vibration-induced disconnect.
Yes, 6-104549-0 is ROHS3 compliant. The housing material is polyphthalamide (PPA) rated UL94 V-0.
The pitch is 0.050" (1.27 mm) with 100 positions in 2 rows. Row spacing is 0.100" (2.54 mm).
