TE Connectivity AMP Connectors 6-104909-9 — Pin Headers

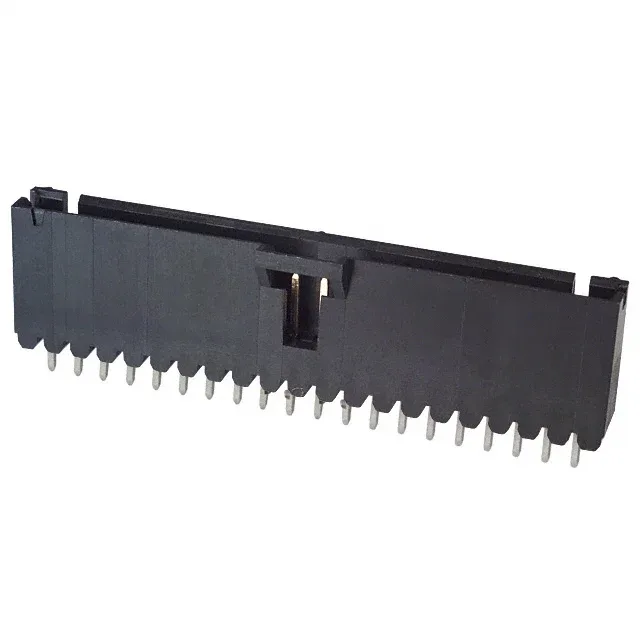

6-104909-9 TE Connectivity AMPMODU MTE Header 20 Pos 2.54mm

MPN6-104909-9
Active

TE Connectivity AMPMODU MTE header, 6-104909-9, 20 positions, single row, 0.100" (2.54 mm) pitch, shrouded 4-wall, gold mating finish, 3 A, through-hole press-fit/solder, black thermoplastic UL94 V-0.

$4.4100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU MTE
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6-104909-9 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.535\" (13.60mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

6-104909-9 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions20
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Overall contact length0.545\" (13.84mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

What this 20-position header does in the AMPMODU MTE family

The 6-104909-9 is a 20-position, single-row, vertical through-hole header from the AMPMODU MTE series. It mates with AMPMODU MTE receptacle housings for board-to-board or cable-to-board connections. The 100.0 µinch tin post finish is standard for solder joint reliability.

Mechanical retention and mis-mate protection

The latch holder accepts the receptacle's latch for audible positive retention — useful in automotive and industrial environments where connectors see shock and cable strain. The insulation height of 0.535" (13.60 mm) and overall contact length of 0.545" (13.84 mm) define the z-height budget above the board.

Where it is specified and what it qualifies for

Frequently asked questions

What is the mating connector for 6-104909-9?

The 6-104909-9 mates with AMPMODU MTE receptacle housings (crimp or IDC) of the same 20-position, single-row, 0.100" pitch layout. The latch holder on the header accepts the receptacle's locking latch.
