Board-fit and routing considerations for the 10-position right-angle header

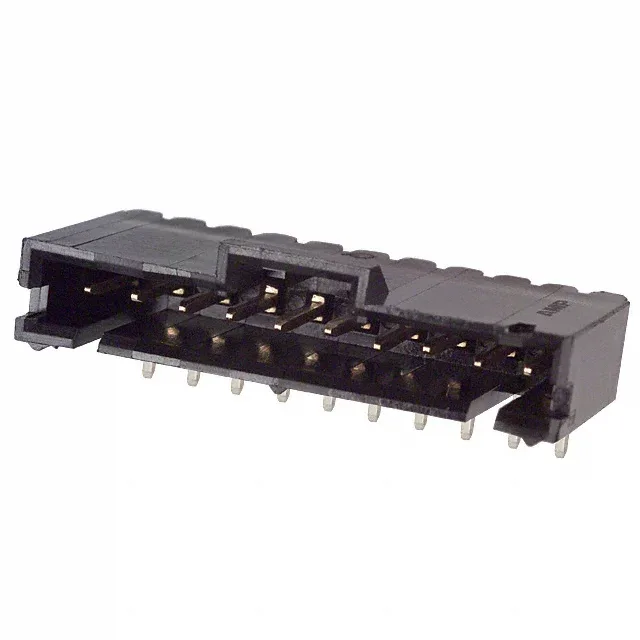

The 6-104935-0 is a 10-position, single-row header from the AMPMODU MTE series, designed for board-to-board or cable applications. Through-hole right-angle mounting orients the header parallel to the PCB, suiting board-edge cable exits in space-constrained enclosures. The full 4-wall shrouding protects the male pins from bending during handling and mating. The latch holder secures the mating receptacle against vibration, critical for automotive and industrial environments.
Mating half and termination checklist
This header mates with AMPMODU MTE receptacle housings that accept 22-30 AWG crimp terminals. The latch holder on the header engages the matching latch on the receptacle for a vibration-resistant connection. Termination is solder — the 0.130" (3.30mm) post length suits standard through-hole PCB thicknesses. The keying slot prevents mis-mating with unkeyed receptacles in multi-connector panels.
