20-position right-angle header for board-to-board or cable interconnects

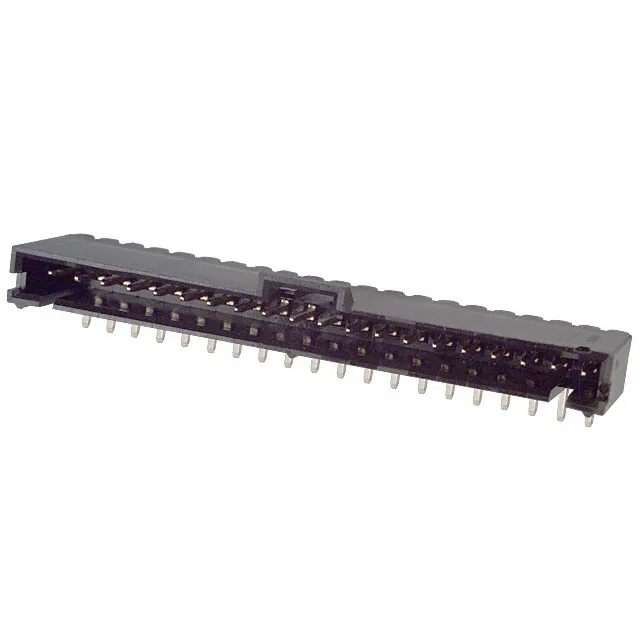

The 6-104935-9: The right-angle through-hole orientation mates parallel to the PCB, useful for board-edge connections where vertical space is limited. The 4-wall shrouding protects the 0.230" (5.84 mm) long square pins from damage during handling and provides keying via a slot to prevent mismating. The mating contacts are plated with 30 µinch gold over nickel, rated for repeated mating cycles and corrosion resistance in environments like automotive, medical, and telecommunications equipment. The solder tails are tin-plated (100 µinch) for reliable soldering to the PCB.
Current rating and temperature range
Rated 3 A per contact, the current ceiling is set by the contact cross-section and the housing material's thermal limits.
